Features

  • Accurate scale outline with sharp details
  • 3-piece, plug-in wing design with centre-section landing gear support
  • Two-piece, plug-in horizontal stabilisers
  • Scale flaps for an authentic look
  • Functional inner gear doors, outer gear doors and tailwheel doors
  • Easily accepts E-Flite P-51 giant-scale electric main and tail wheel retracts—sold separately
  • Fiberglass cowl and scale exhaust detail
  • Painted cockpit with sliding canopy

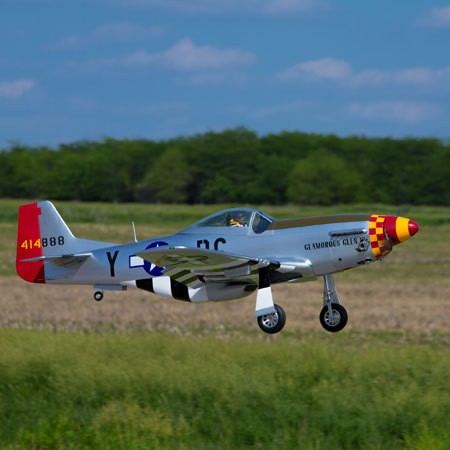

  • Includes two sets of decals (Glamorous Glen III and Gentleman Jim)

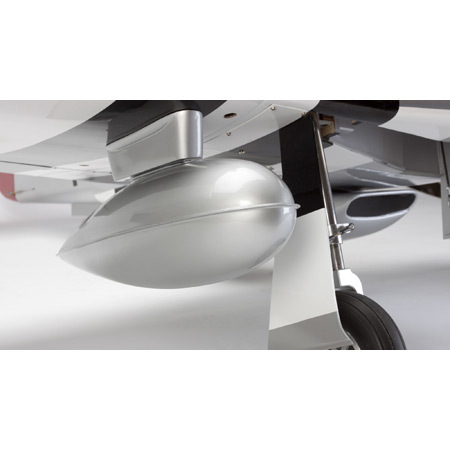

  • Includes wing pylons that accept the optional E-Flite remote payload release system
  • Ready to mount the Evolution 62GXi gas engine with SureFire EFI
  • Complete hardware package featuring fiberglass control horns
  • Optional bombs and drop tanks— available separately

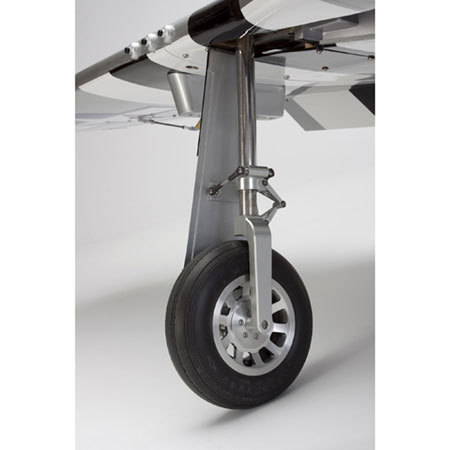

  • Available 5.25" P-51 wheels with CNC aluminum hubs—sold separately

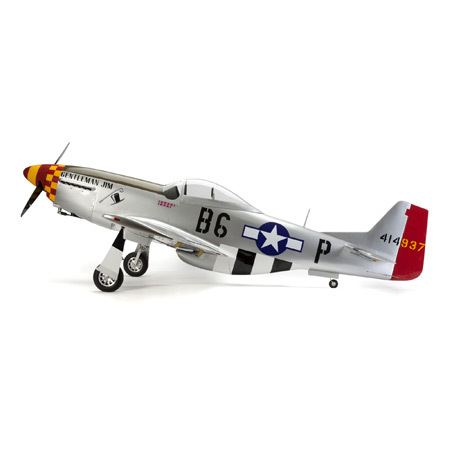

  • The Hangar 9® P-51D Mustang 60cc ARF is a remarkable replica of America’s favorite warbird. Modeled after the Mustangs used by the 357th Fighter Squadron during WWII, it’s constructed in 1/5-scale with lightweight balsa and plywood featuring full balsa-sheeting to maintain a strict scale appearance that’s also durable. Very few details were sacrificed in order to maintain a high-level of performance. So you get a correctly located tail wheel and other outline characteristics in a way that makes modern scale modeling worth while. The functioning flaps facilitate scale takeoffs and landings while the internally mounted power switches help preserve the scale effect. One of the greatest convenience features is the three-piece wing, which features plug-in outer panels so that the center panel with the landing gear can stay attached to the fuselage—making assembly and transport super convenient. The airfoiled horizontal tail sections are removable as well.

  • Specs

    Wingspan
    89.0 in (226 cm)
    Overall Length
    77.5 in (197 cm)
    Wing Area
    1420 sq. in. (96.1 sq. dm.)
    Engine Size
    60cc 2-stroke gas engine
    Radio
    8+ channel radio system
    Servos
    (3) high-torque servos (flaps/rudder); (2) retract servos; (3) standard servos (ailerons, throttle); (2) mini servos (elevators)
    Trim Scheme Colors
    UltraCote Silver (U881), Black (U874), White (U870), Deep Red (U871), Olive Drab (U904), Cub Yellow (U884)
    CG (Centre of Gravity)
    6.5-7.0 in (165-178mm) back from the leading edge at wing root
    Prop Size
    22 x 8 to 24 x 10
    Spinner Size
    5-1/2 in (140mm), included
    Recommended Receiver Battery
    6.6V 2S 2200mAh LiFe receiver battery
    Flaps
    Yes
    Retracts
    Required, not included
    Minimum Age Recommendation
    14 years
    Experience Level
    Advanced
    Recommended Environment
    Outdoor
    Assembly Time
    20+Hours
    Is Assembly Required
    Yes
    Plane Type
    Giant
    Power Plant Size
    3.1-3.6 2-Cycle Gas
    Recommended Environment
    Outdoor
    Fuel Type
    Gas

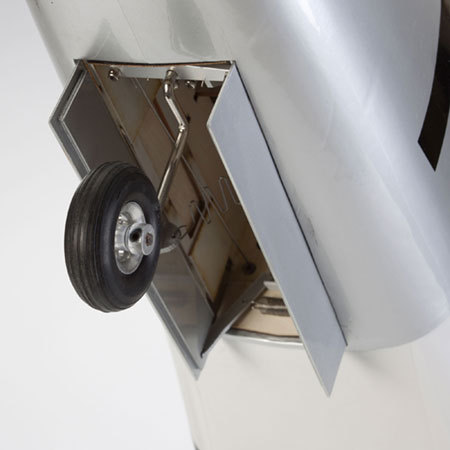

This P-51D Mustang comes out of the box with all kinds of details that have been finished for you, including a removable scale antenna, gun details, and much more. In addition, the inner gear doors have been fashioned to sequence in a scale manner using common components. The steerable tail wheel also features doors and a retractable electric tail wheel assembly (sold separately) that is a bolt-in option. Genuine UltraCote® covering delivers an easy to maintain finish that offers a realistically painted appearance similar to the way you’d see a professionally restored full-size P-51D today.

Just about everything Hangar 9 product developers could think of has been done to make set up convenient. The included sliding canopy and full-depth cockpit is provided as inspiration for you to take the scale experience as far as you’d like. Plus, you get two sets of marking decals; “Glamorous Glen III” as flown by Captain Chuck Yeager and “Gentleman Jim” as flown by Captain Jim Browning for an extra sense of authenticity and realism you can match up with aircraft still flying to this day.

Hangar 9 engineering excellence means you can count on great handling on the ground, in the air and during every hot strafing run in between. The P-51D Mustang 60cc can be powered for warbird performance using gas or electric power. This means you can enjoy what the Hangar 9 P-51D Mustang was truly meant for—blazing through the sky with authority just like the heroes of our past.




KEY FEATURES

True scale outline with accurate details
3-piece, plug-in wing design with center-section landing gear support
Two-piece, plug-in horizontal stabilizers
Working inner gear doors, outer gear doors and tailwheel doors
Easily accepts E-flite® P-51 giant-scale electric main and tail wheel retracts—sold separately
Fiberglass chin cowl and scale exhaust detail
Painted full-depth cockpit with sliding canopy
Includes 2 sets of decals (Glamorous Glen III and Gentleman Jim)
Includes wing pylons that accept the optional E-flite remote payload release system
Complete high-quality hardware package featuring fiberglass control horns
Optional bombs and drop tanks—sold separately
Available 5-1/4" P-51 wheels with CNC aluminum hubs—sold separately
Scale flaps for an authentic appearance
Optional painted aluminum spinner-sold separately

PRODUCT SPECIFICATIONS

Wingspan:
89.0 in (226 cm)
Overall Length:
77.5 in (197 cm)
Wing Area:
1420 sq. in. (96.1 sq. dm.)
Flying Weight:
26.0-28.5 lb (11.8-13.0 kg)
Engine Size:
50-60cc
Radio:
8+ channel radio system
Servos:
(3) high-torque servos (flaps/rudder); (2) proportionial retract servos (main gear doors); (3) standard servos (ailerons, throttle); (2) mini servos (elevators)
Trim Scheme Colors:
UltraCote Silver (U881), Black (U874), White (U870), Deep Red (U871), Olive Drab (U904), Cub Yellow (U884)
CG (center of gravity):
6.5-7.0 in (165-178mm) back from the leading edge at wing root
Wing Loading:
40.6-43.8 oz/sq ft
Prop Size:
22 x 8 to 24 x 10
Spinner Size:
5.50 in (140mm)
Recommended Battery:
6.6V 2S 2200mAh LiFe receiver battery
Flaps:
Yes
Retracts:
Required (not included)
Control Throw (Ailerons):
Low: Up 0.59 in (15mm), Down 0.44 in (11mm) High: Up 0.88 in (22mm), Down 0.66 in (17mm)
Control Throw (Elevator):
Low: Up 0.38 in (10mm), Down 0.38 in (10mm) High: Up 1.0 in (25mm), Down 1.0 in (25mm)
Control Throw (Rudder):
Low: Left 1.19 in (30mm), Right 1.19 in (30mm) High: Left 2.16 in (55mm), Right 2.16 in (55mm)
Control Throw (Flaps):
Mid flap 1.0 in (25mm), Landing flap 2.81 in (72mm)
Minimum Age Recommendation:
14 years
Experience Level:
Advanced
Recommended Environment:
Outdoor
Assembly Time:
20+Hours
Is Assembly Required:
Yes

SKU HAN4770
Brand Hangar 9
