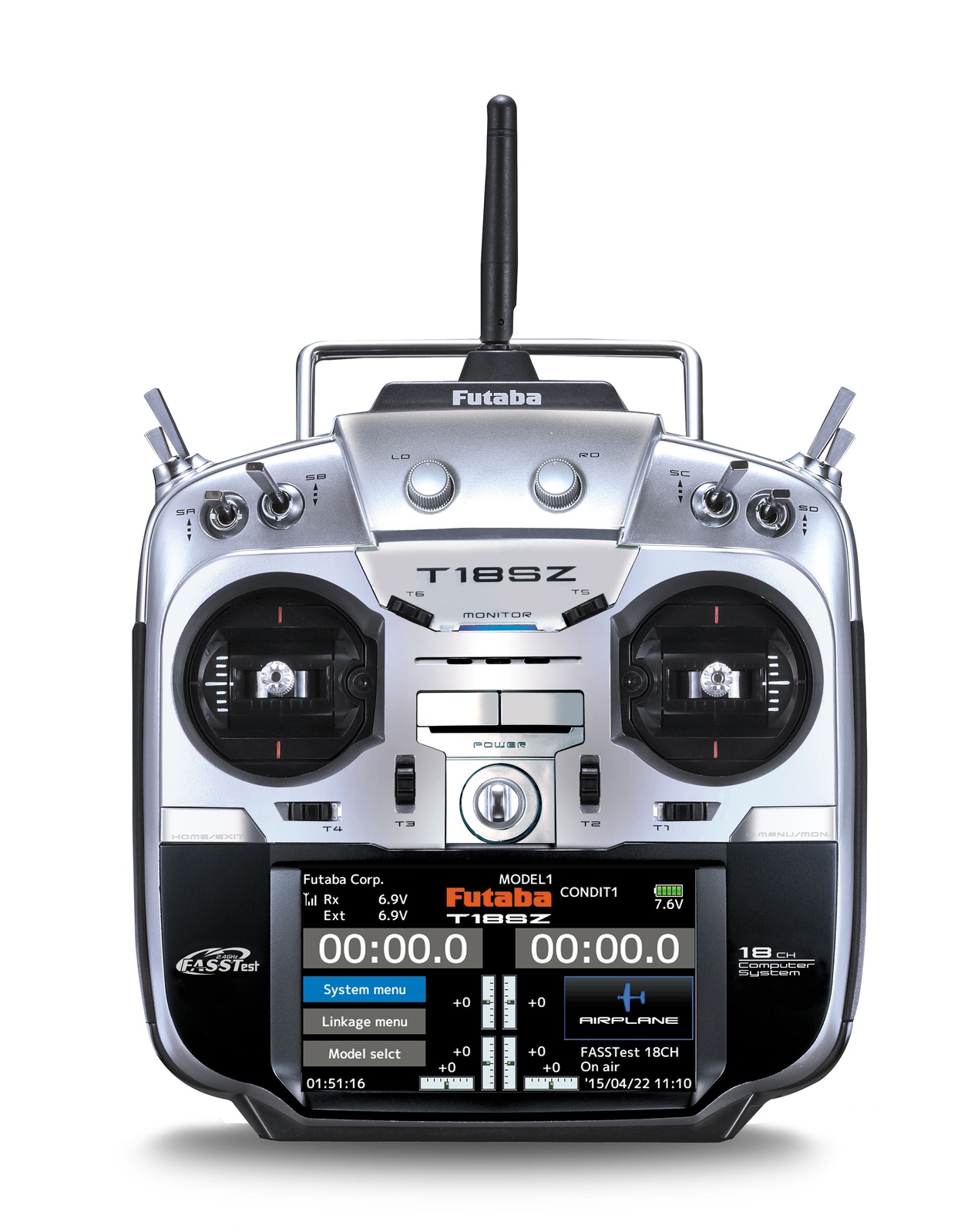

18SZ 2.4G inc R7308SB Rec Mode 2 inc Charger

FEATURES

FASSTEST SYSTEM: The 18SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.

COLOR TOUCH SCREEN LCD: T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

MODEL TYPES: Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIFE BATTERY: The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED: Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON: Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION: Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION: A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.

CONTENTS

YOUR T18SZ INCLUDES THE FOLLOWING COMPONENTS:

  • T18SZ Transmitter – Air Version includes ratcheting throttle – Helicopter Version includes smooth throttle
  • R7308SB Receiver
  • FT2F2100BV2 LiFe Battery* and Charger
  • Switch Harness
  • Mini Driver

*NOTE: The battery in the T18SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.

TRANSMITTER SPECS

TRANSMITTER FREQUENCY: 2.4 GHz band

SYSTEM: FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable

POWER SUPPLY: 6.6 V FT2F2100BV2 LiFe battery

FREQUENCY BAND: 2.4 GHz

RF POWER OUTPUT: 100mW EIRP

RECEIVER SPECS

R7308SB

SIZE: 24.9 x 47.3 x 14.3 mm 0.98 x 1.86 x 0.56 in

WEIGHT: 10.9 g 0.38 oz

POWER REQUIREMENTS: DC 3.7~7.4V

VOLTAGE RANGE: DC 3.5~8.4V

SKU FUT18SZR7308SBM2
Brand Futaba
