FEATURES:
Freewing is the Avanti's original designer
Powerful 9-blade EDF with all-new 3530-1850KV inrunner motor and 100A ESC
115mph airspeed on stock outrunner and 6s 4000mAh battery
Optimized ducting that eliminates the need for a cheater hole
Electric retracts and trailing link suspension struts for grass operation

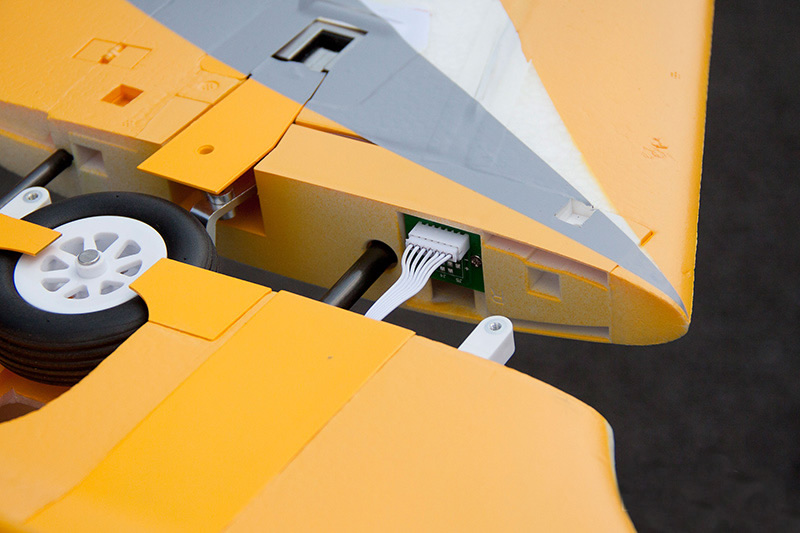

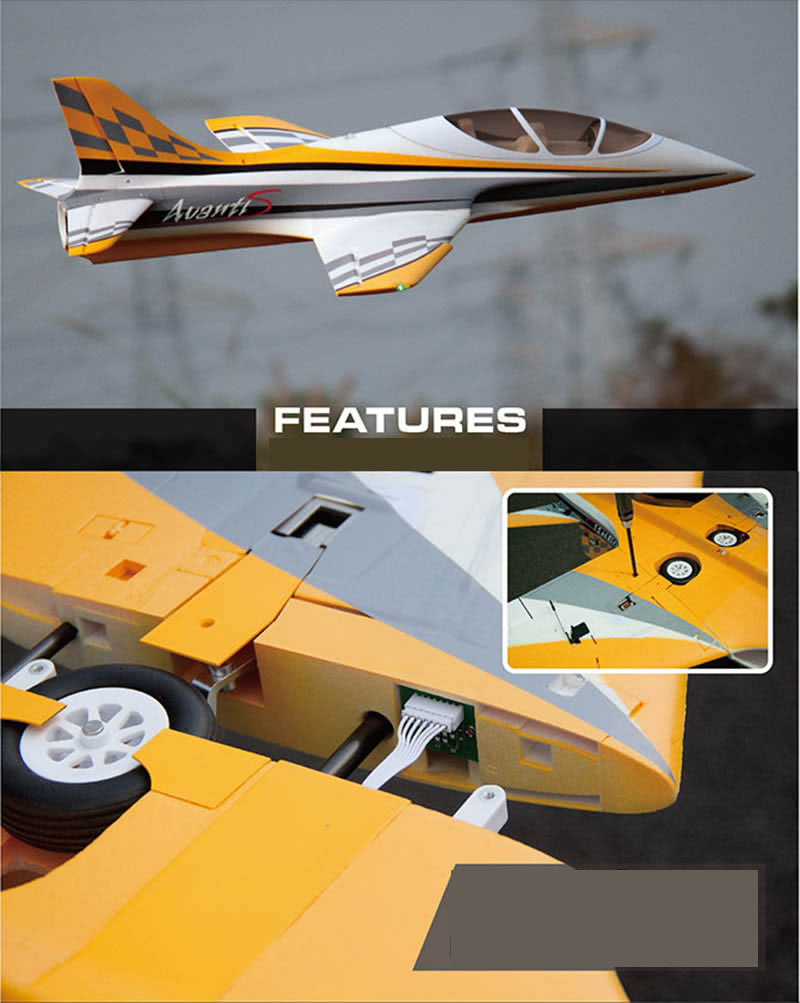

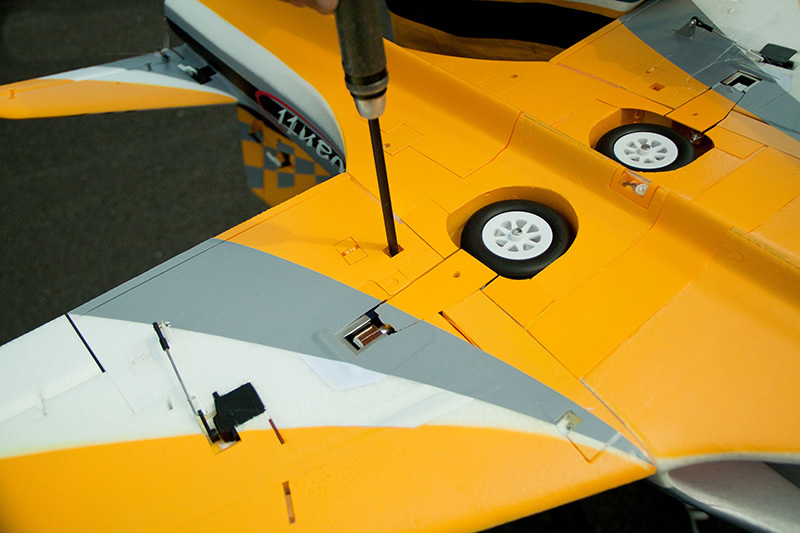

Removable wings with quick disconnect plug

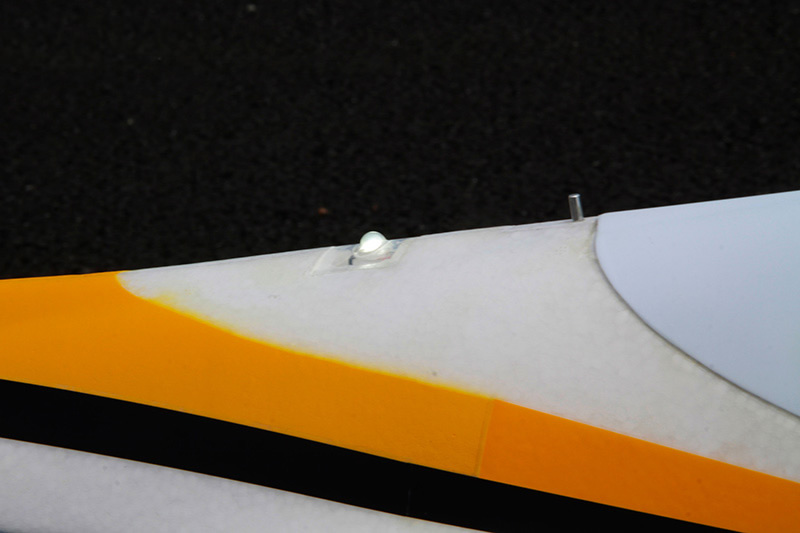

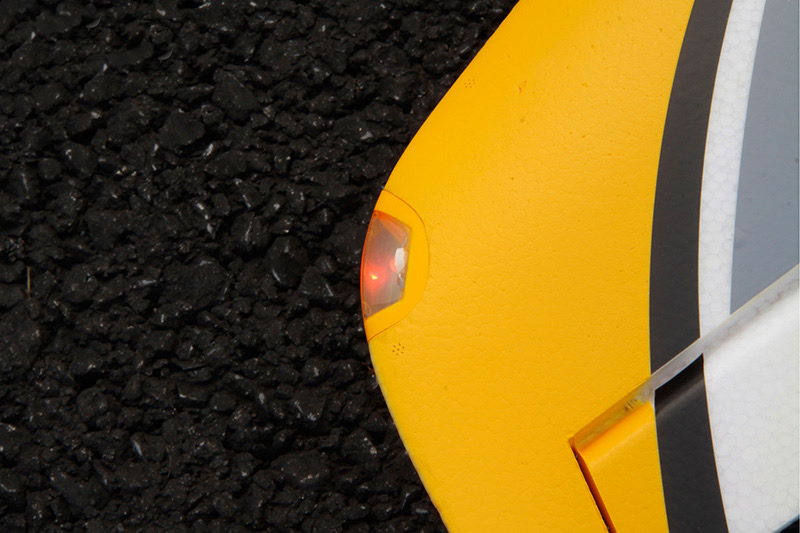

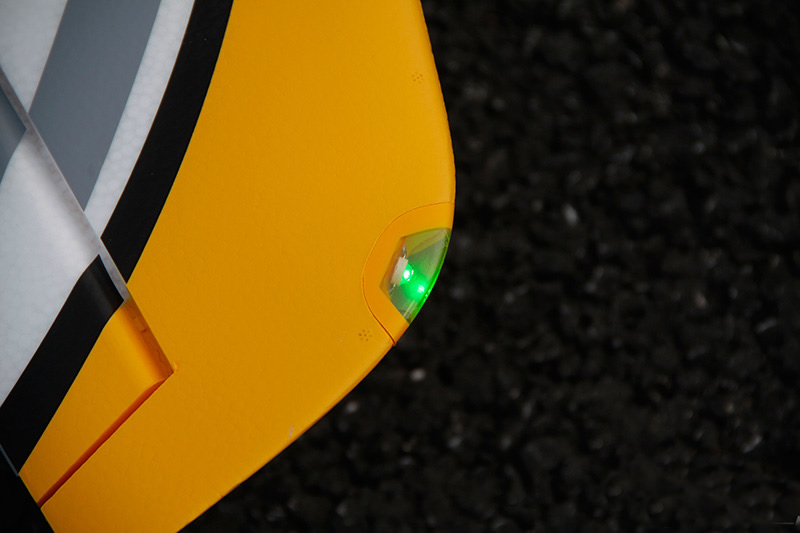

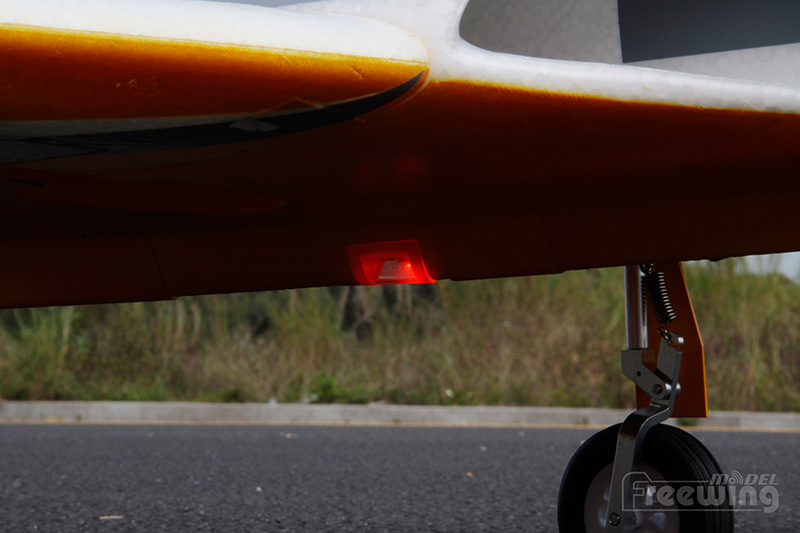

LED position lights on the wingtips, dorsal spine, and ventral keel
1236mm wingspan and 1300mm length

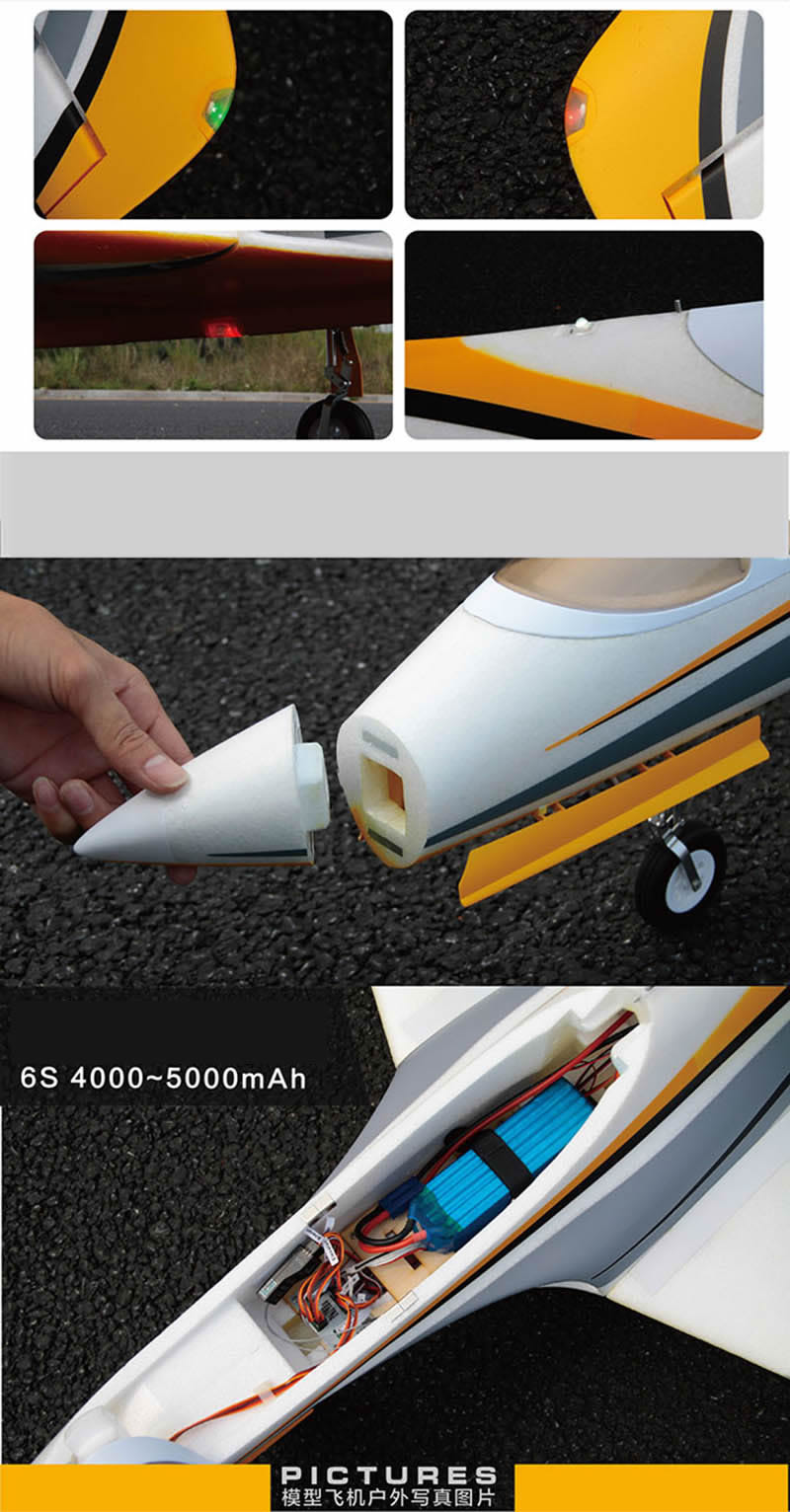

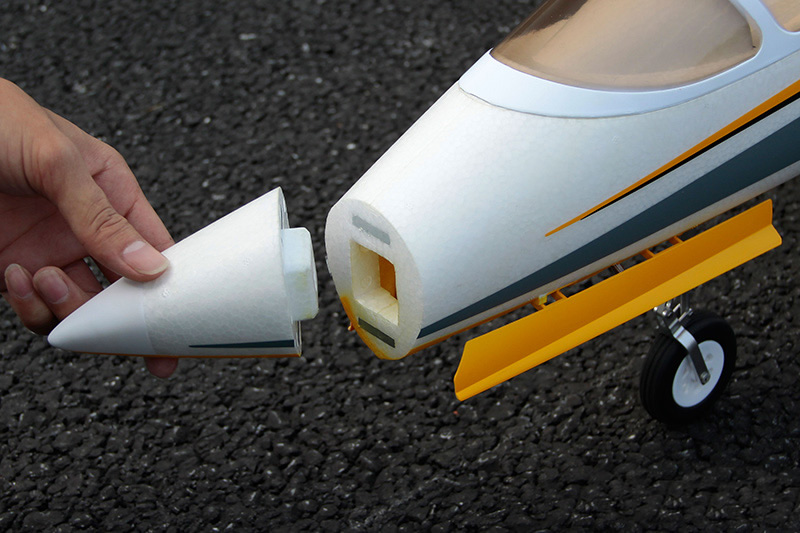

Magnetic removable nose cone with plastic cap for durability
Split flaps
Two seat foam cockpit and light tinted plastic canopy for customization

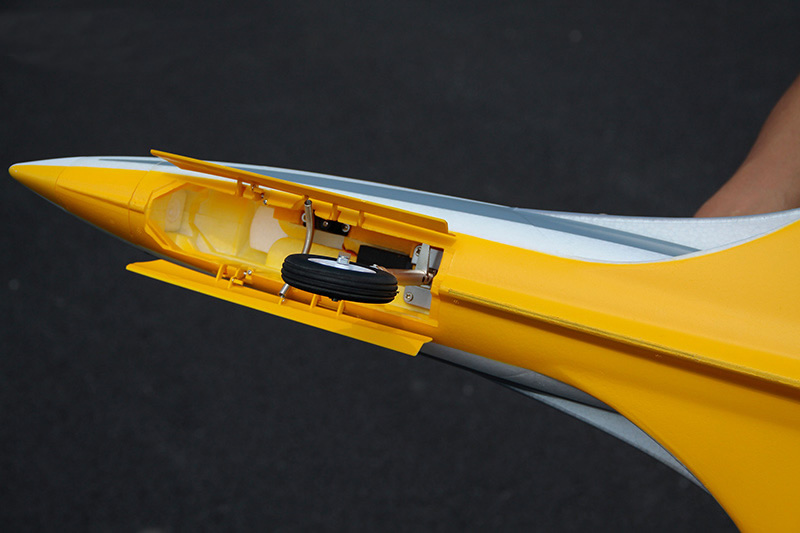

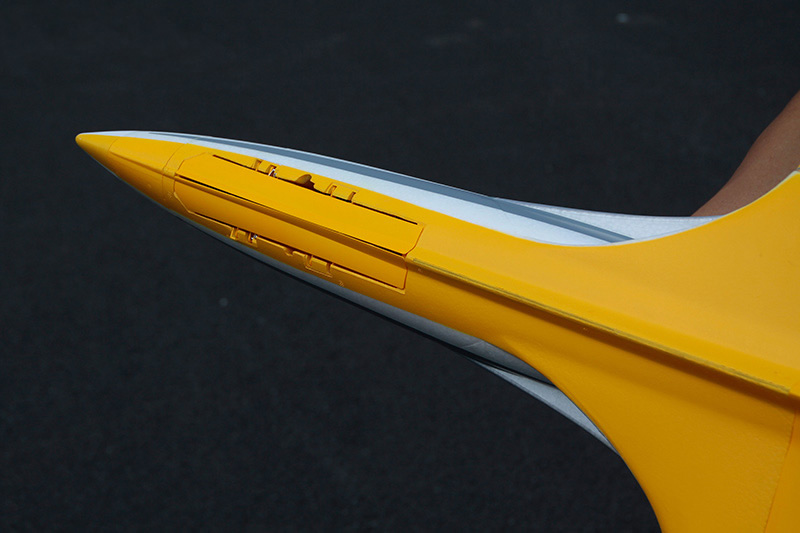

Spring-hinged double nose door
Digital Metal Gear servos on all surfaces
INCLUDES:
Freewing Avanti S 80mm EDF Ultimate Sport Jet - PNP
REQUIRES:
6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection
6 Cell 22.2V 4000 MAh or 5000 mAh LiPo Battery with EC5 connector -
Minimum 6 Cell Battery Charger - Select a minimum 6 Cell battery charger from our Battery Collection





PRODUCT SPECIFICATIONS:

Wingspan

1236mm / 48.6in

Length

1300mm / 51.2in

Flying Weight

1920g (without battery)

thrust

3300(g)

CG (Center of Gravity) 105-110mm where wing's LE meets fuselage (see manual diagram)

Power System

3530-1850KV Brushless Outrunner Motor

Electronic Speed Control

100A ESC with EC5 Connector

Propeller / EDF

80mm Metal EDF with 12 Blade Fan

Servos

9g metal gear standard with 200mm lead : nose gear steering. left flap,

right flap
9g metal gear standard with 500mm lead : left aileron, right aileron
9g metal gear reverse with 600mm lead (+ 300mm lead) : right elevator
9g metal gear standard 600mm lead (+ 300mm lead) : left elevator, rudder

Landing Gear Electric retracts and trailing link suspension struts for grass operation

Required Battery

6S 22.2V 4000mAh or 5000mAh LiPo with EC5 Connector

Required Radio

6+ Channel

Ailerons Yes

Elevator

Yes

Rudder Yes

Flaps

Split

Lights

Yes

Hinge Type

Nylon reinforced hinges

Material EPO Foam
Skill Level Advanced
Build Time 1 Hour
Recommended Environment Outdoor

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

Freewing Avanti S 80mm EDF JET

SKU FJ21223P
Brand FREEWING
Shipping Weight 7.0000kg
