This version of the AL37 Airliner comes with decals pre-applied with one exception, the "Freewing Airlines" decal is included with the model but not applied on the fuselage.

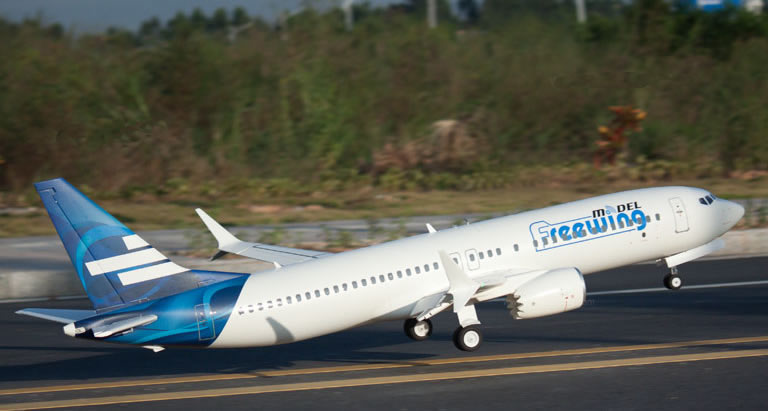

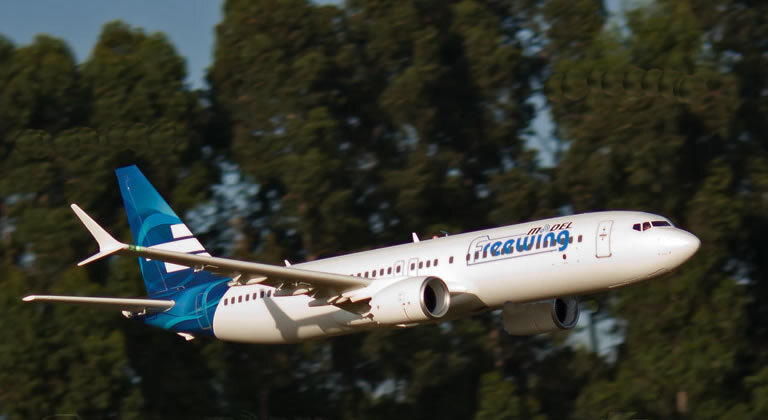

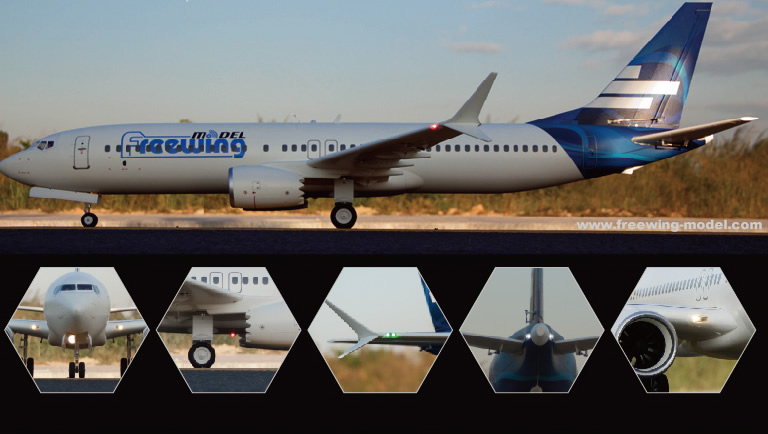

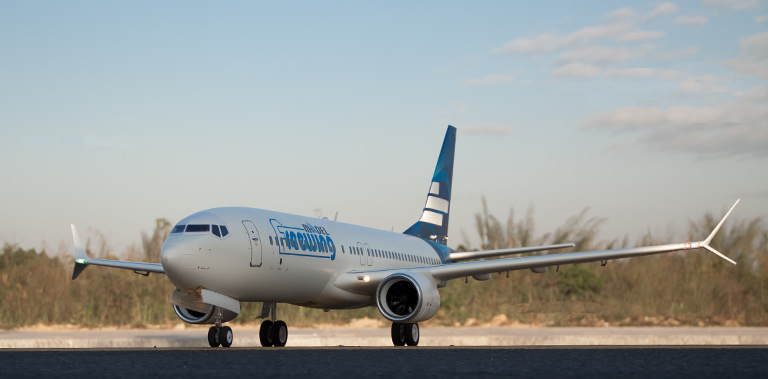

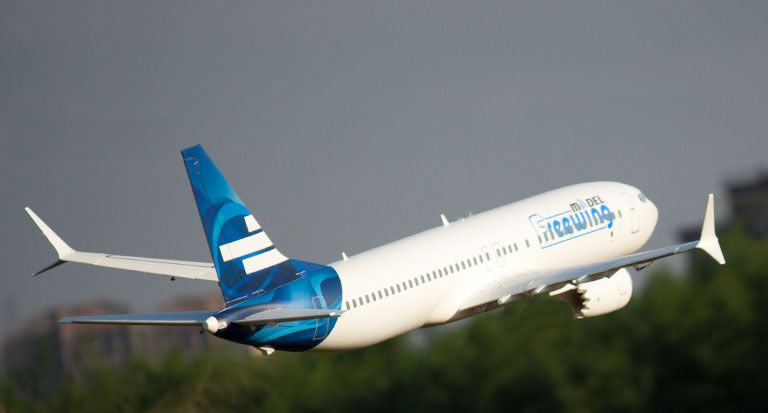

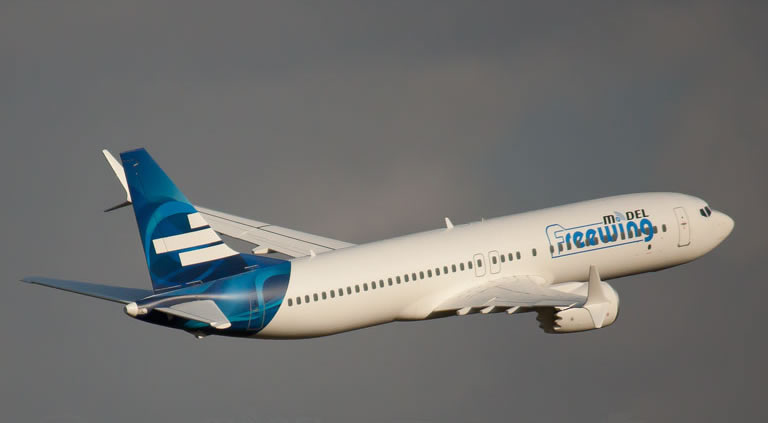

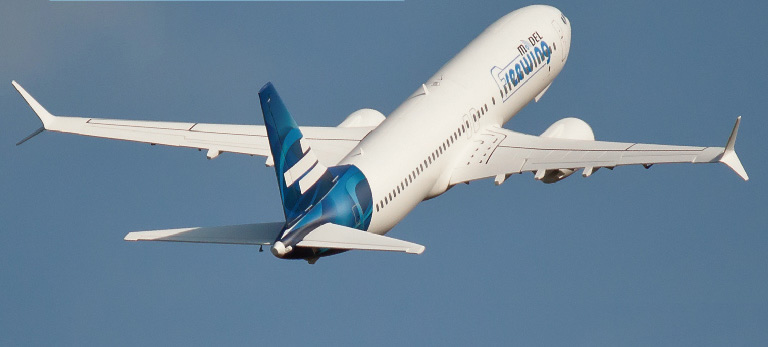

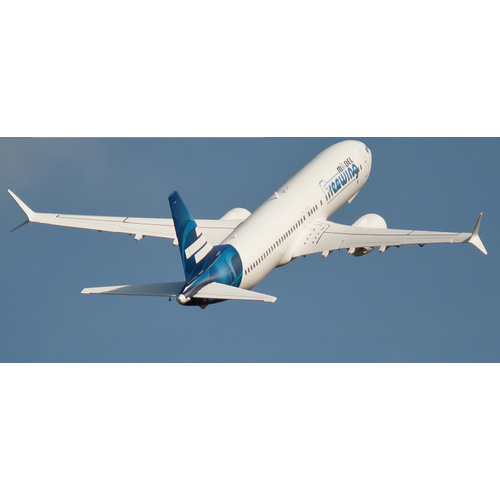

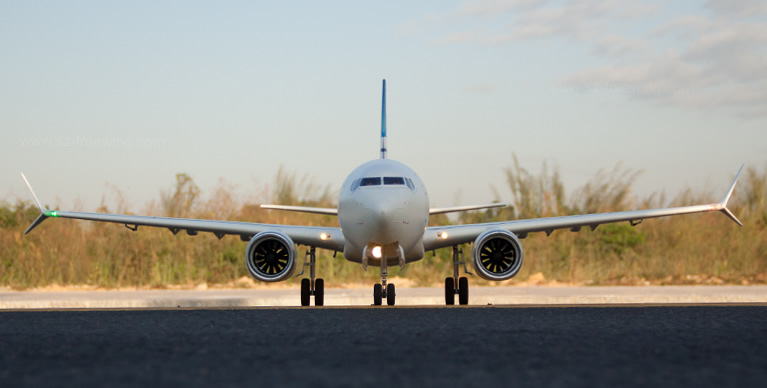

Freewing Model is excited to release Freewing's first twin-engine passenger EDF jet! Introducing the twin 70mm Freewing AL37 Airliner. With a length of 2000mm (78.75") and a wingspan of 1830mm (72 inch ), it's the largest EDF produced by Freewing to date. This model uses EPO foam with integrated aluminum carbon to strengthen the airframe while limiting the weight of the model to the greatest possible extent. Except for the foam fuselage, all the other components require only screws to complete an easy assembly.

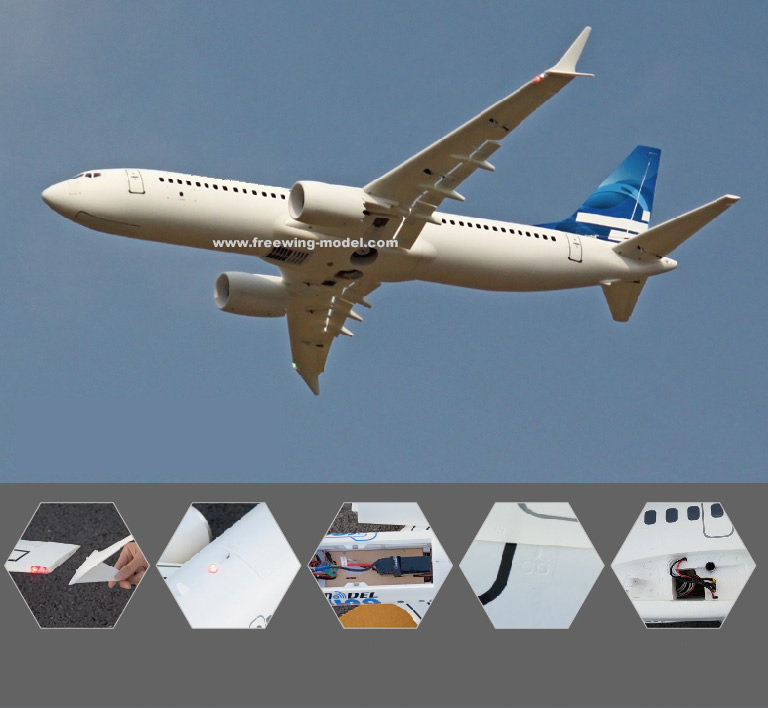

A control board with ribbon wire is used to simplify the wires between the main wing and the fuselage for easy assembly and disassembly for transport. The built-in wiring channel of the main wing is easy to use and retains the overall scale appearance of this gorgeous airliner. Add to it 11 pre-installed LED lights throughout the aircraft and you will love taking leisure flights at dawn and dusk with this AL37 airliner.
The Freewing AL37 Airliner uses two 3048-2150KV brushless outrunners housed in 70mm EDF casing with 12-blade fans. Those are powered by two 60A brushless ESC and need just one 6S LiPo to limit weight and allow this airliner to cruise comfortably at less than half throttle. In the case of a 6S 5000mAh battery, the maximum flight time can stretch to potentially 10 minutes with the proper throttle usage.
The front and rear landing gears are made of aluminum alloy and have shock absorption function and will make scale landings on the mains an enjoyable experience with each and every flight. Also, the larger size of the wheels (Nose wheel diameter: 45mm, Main wheel diameter: 70mm) make take-offs and landings a breeze in most grassland environments. This model has a beautiful air posture, and good stability in high and low speed. It is very suitable for an immersive flight like FPV and is an excellent leisurely flyer that every EDF jet pilot can enjoy.
FEATURES:
- Beautiful, scale outline both static and in the skies,it is made in china Freewing Model
- Giant scale, yet lightweight with docile flying characteristics
- Attractive, Freewing -centric white decals
- 11 LED light system throughout the airframe
- 4 screw wing assembly makes for easier transport
- Removable winglets with MWS slotting system
- Scale aluminum suspension struts
- Nacelles easily removed with 3 screws
- Scale flap system
INCLUDES:
- Freewing AL37 Airliner Twin 70mm EDF Jet - PNP
- Electronic retracts, motors, EDFs, ESCs and servos (they were installed)
REQUIRES:
- 6 Channel radio - select a minimum 6 channel radio
- 6 Channel receiver - select a minimum 6 channel receiver
- 6 Cell 22.2V 4000 to 6000 mAh LiPo battery with EC5 connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger
Model Scale |
1/19 Scale |
Wingspan |
1830mm / 72.04in |
Length |
2000mm /78.74in |
Weight |
3350g / 118.16oz |
CG (Center of Gravity) |
185mm from the leading edge of the wing root |
Power System |
2x 6S 3048-2150kV Outrunner Motors (included) |
Electronic Speed Control |
2x 60A with 8A UBEC (included) |
Propeller / EDF |
2x 70mm 12-Blade EDF (included) |
Servos |
6x 9g Digital Metal Gear Standard Servos 4x 9g Hybrid Digital Metal Gear Standard Servos |
Landing Gear |
Electronic retractable (included) |
Required Battery |
6S 22.2V 4000-6000mAh LiPo with EC5 Connector (required) |
Required Radio |
6+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoors |
SKU | FJ31513P |
Brand | FREEWING |
Shipping Weight | 7.2000kg |
Shipping Width | 0.490m |
Shipping Height | 0.340m |
Shipping Length | 1.200m |
Shipping Cubic | 0.199920000m3 |
