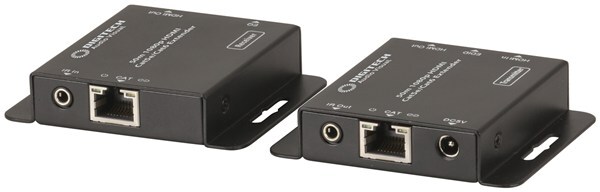

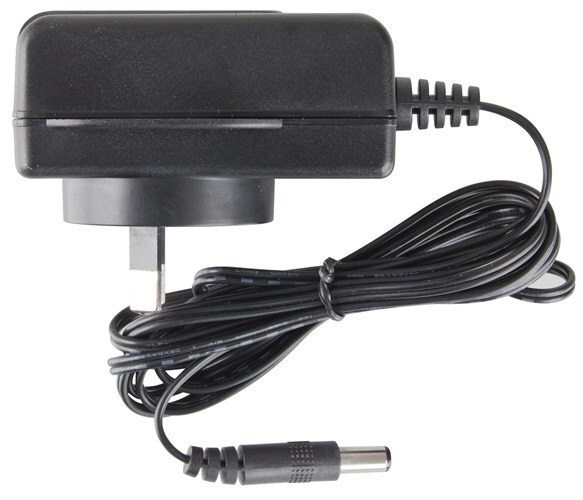

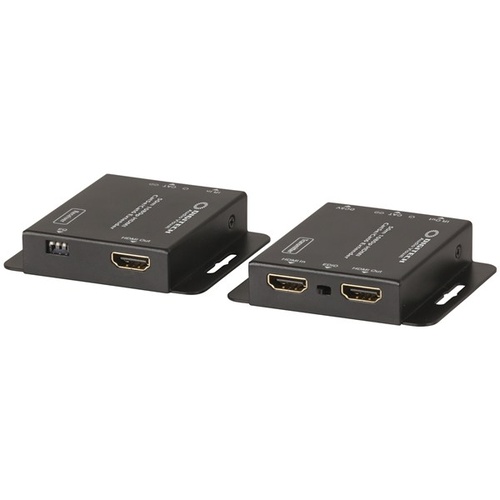

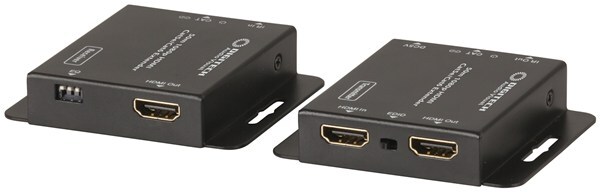

Using this Cat5e/Cat6 extender however, you can achieve up to 50m transmission distance while still supporting up to 1080p 60Hz signals! The receiver uses Power-Over-Cable (PoC) technology so it receives its power from the transmitter using the Cat5e/Cat6 cable. The transmitter module even includes HDMI pass-through, so you can connect the original source and still view the display while transmitting. Full audio support is included, with up to 7.1 surround sound. What’s more is the infrared extension too, so you can take your remote control with you and still control the remote device. Includes infrared emitter, infrared receiver and mains power adaptor.

Features:

. 40m(Cat5e), 50m (Cat6) Transmission Range
. Power Over Cat5e/Cat6 Cable (PoC)
. HDMI Pass-Through
. HDCP & 3D Support
. Adjustable Equaliser
. EDID Data Transmission
. Infrared Extender
Specifications:

Transmission Distance: Up to 50m (Cat6)
                                   Up to 40m (Cat5e)
HDMI: 1.4b
HDCP: 1.4
Resolution: Up to 1080p (1920 x 1080) @ 50/60Hz
Video Bandwidth: 4.95Gbps
Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
           Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Colour Depth: 24-bit
Infrared Frequency: 20-60KHz
Power: 5VDC, 1A (Transmitter)
Power Consumption: 200mA (Max)
Dimensions: 80(D) x 69(W) x 18(H)mm (Each)
SKU AM-AC1783
Model # AC1783
