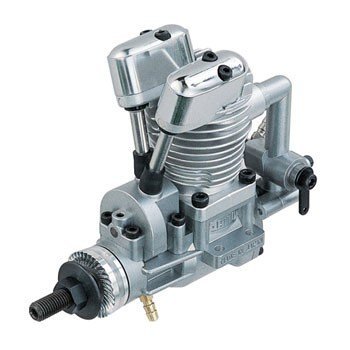

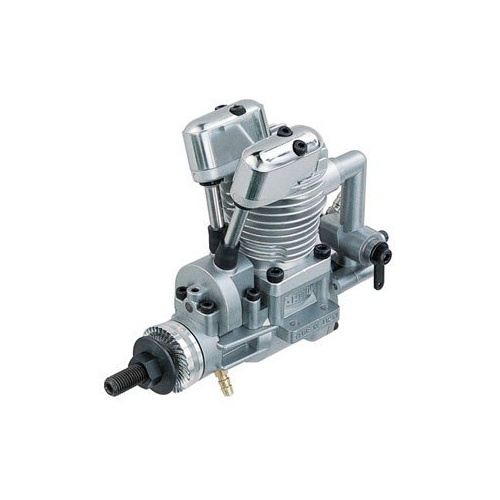

SAITO FA-30S (H) 4- CYCLE GLOW

Cylinder- Monolithic structure of cylinder head and cylinder with direct hard chrome plated inner surface without using cylinder liner, this engine emphasizes durability while it also offers lightweight and distortion-free structure with improved cooling efficiency.

Piston- High silicon content aluminum is used in the piston construction. It also has a compression ring that increases the engine's efficiency.

Crankshaft- Made solid chrome molybdenum steel and supported by two ball bearings.

Combustion chamber- Increased combustion efficiency with improved hemispherical shape.

Cam gear- Our front mounted cam gear design results in a compact engine.

Cam- Features high-output type high cam.

Carburetor- High-performance type with slow adjustment equipped.

Propeller nut- Double nut design to prevent fall-off for safety.

Exhaust sound- Real-plane-like exciting exhaust sound.



Specifications:



Bore      20.0mm diameter            Stroke   16.0mm

Stroke volume  5.03cc    Weight Approx. 258g,engine only (Approx. 268.5g w/ muffler)

Practical speed  Approx. 2,200⁓ 12,000rpm (Recommended highest speed on ground: 9,500⁓ 11,500rpm

Propeller (Standard)

9" x 6"⁓ 9" x 8"

10"x 5"⁓ 10" x 6"



Fuel flow             Approx. 10cc/minute (at full throttle, approx. 10,400rpm)

Fuel flow varies depends upon propeller load. More fuel flow with larger load and less flow with smaller load. (In actual flight, fuel flow somewhat increases.)

Fuel       Synthetic oil with 10⁓20% nitromethane content

Static thrust        APC 10" x 5"- 1.0kg          Application         Airplane of 2 cycle 20⁓ 25 class

RC Stunt Airplane, Scale Airplane, Sports Airplane

CL Stunt Airplane

Accessories        Spanner for tappet adjusting screw

Tappet adjusting screw gap gauge (0.1t)

Muffler set

P-S glow plug

1 each

1 each

1 set

1each

SKU SAITO030S
Barcode # 2000000001746
Brand Saito Engines
Shipping Weight 0.0500kg
