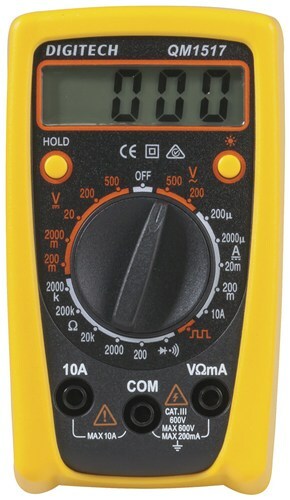

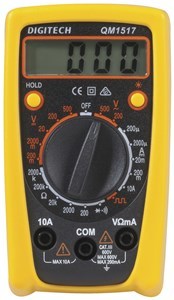

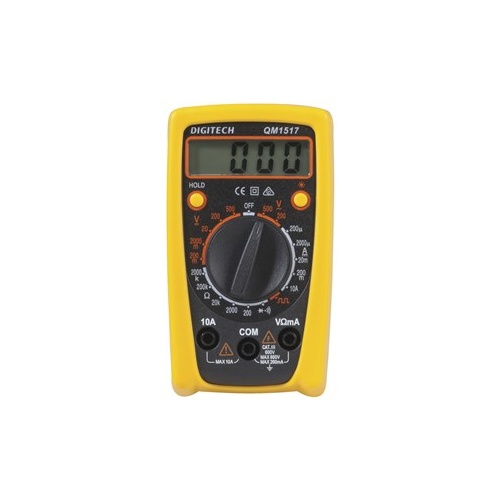

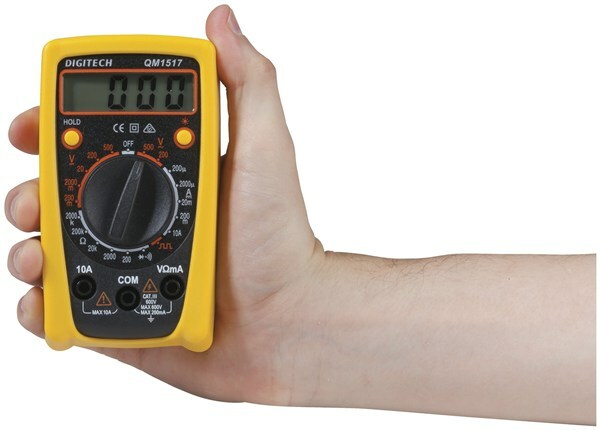

Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

Perfect for the electronics enthusiast or student who wants an inexpensive multimeter that features a number of practical functions. The three input jacks and enclosed test leads allow you to measure AC and DC voltage, DC current, resistance and continuity. The backlit display and continuity buzzer quickly alert you to circuitry and power delivery issues, helping you make informed decisions about what to do next. The data hold feature assists with data retention and analysis, while the meter‘s durable enclosure prevents damage from knocks and falls

Features:
  •  Data Hold
  •  Over-range Indication
  •  Overload Protection
  •  Square Wave Output
  •  AC/DC Voltage
  •  DC Current
  •  Resistance
  •  Diode Test
  •  Continuity
  •  Backlight

Specifications:
Security Class: CAT III 600V
Display: 2000 count
Security Class: Cat III 600V
Basic DCV Accuracy: 2.00%
DC Voltage: 200mV, 2000mV, 20V, 200V, 500V ± (1.0% + 10)
AC Voltage: 200V, 500V ± (2.0% + 10)
DC Current: 200uA, 2000uA, 20mA, 200mA, 10A ± (2.0% + 5)
Resistance: 200?, 2k?, 20k?, 200k?, 2000k? ± (2.0% + 5)
Measurement Type: Average
Input Impedance: 1M?
Dimensions: 115(L) x 65(W) x 30(H)mm
Weight: 170g (with holster)
Battery Type: 1 x 9V  (included)

SKU AM-QM1517
Model # QM1517
Barcode # 9319236676134
