Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

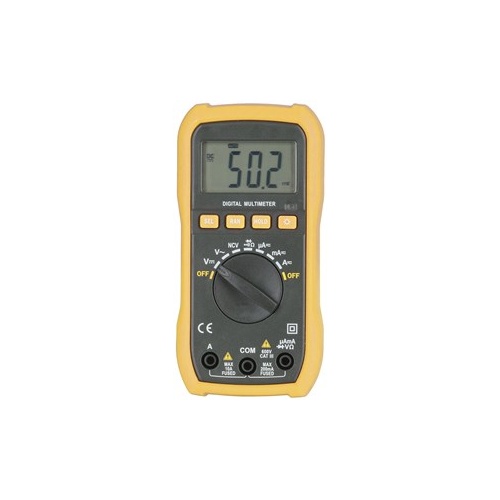

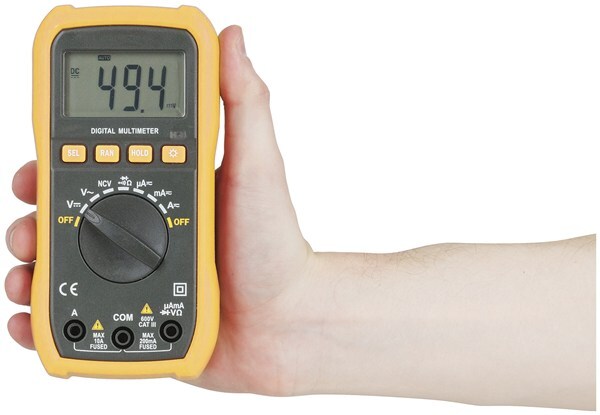

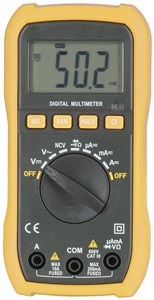

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.

Features:
  •  Data Hold
  •  CAT III 600V
  •  Auto Power Off
  •  Overload Protection
  •  AC/DC Voltage
  •  AC/DC Current
  •  Resistance
  •  Diode Test
  •  Continuity
  •  LINE Test
  •  Backlight

Specifications:
Display: 2000 count
Security Class: Cat III 600V
Basic DCV Accuracy: 0.800%
DC Voltage: 200mV, 2V, 20V, 200V, 600V (±0.8%)
AC Voltage: 200uV, 2mV, 20mV, 200V, 600V (± 1%
DC Current: 200uA, 2mA, 20mA, 200mA, 10A (± 3%)
AC Current: 200uA, 2mA, 20mA, 200mA, 10A (± 3%)
Resistance: 200?, 2k?, 20k?, 200k?, 2M? (± 1.5%)
Measurement Type: Average
Input Impedance: 10M?
Dimensions: 144(L) x 70(W) x 32(H)mm
Weight: 200g
Battery Type: 2 x AAA

SKU AM-QM1529
Model # QM1529
Barcode # 9319236676301
