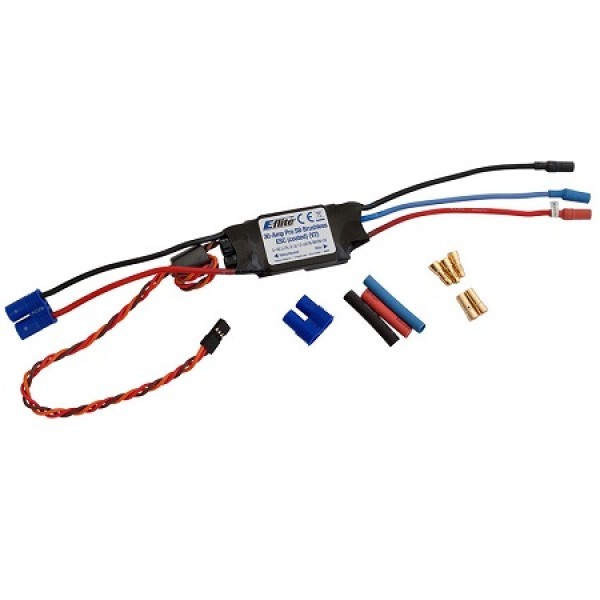

This 30 Amp ESC is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers,saving you weight and complication.

Your new E-Flite 30-Amp Pro Switch-Mode BEC Brushless ESC has a special water-resistant coating on the electronics to ensure reliable performance in higher than average moisture conditions.  This conformal coating can offermild protection fromlight drops ofwater.

  • Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
  • 3.5A* continuous current, 5V Switch-Mode BEC Circuit
  • Stronger BEC for support of most 3-axisstabilization systems
  • Drive up to 7 analog or 6 digital standard-size servos with the BEC on Any recommended input voltage
  • 3-to 6-cell Li-Po, 9-to 18-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cut off with settings for 3-cell Li-Po (9.2V), 6-cell Li-Po (12V) or 74% of battery starting voltage
  • Programmable throttle input range: : 1.1–1.9ms or 1.2–1.8ms
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges to for use with a large variety of brushless motors
  • Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mmgold bullet connectors on motor output leads
  • * Proper cooling and airflow required
Continuous Current
30A*
Max Burst Current
35A (15 sec)*
Length
51.0mm(2.0 in)
Width
28.0mm(1.10 in)
Height
8.70mm(0.35 in)
Weight
31.0 g (1.10 oz
Cells
3–6S Li-Po or 9–18 Ni-MH/Ni-Cd
Battery Input Lead
16AWG with E-flite EC3 Connector
Motor Output Leads
16AWG with 3.5mm Gold Bullet Connectors
SKU EFLA1030BC
Barcode # 605482079201
Brand E-Flite
Shipping Weight 0.0500kg
