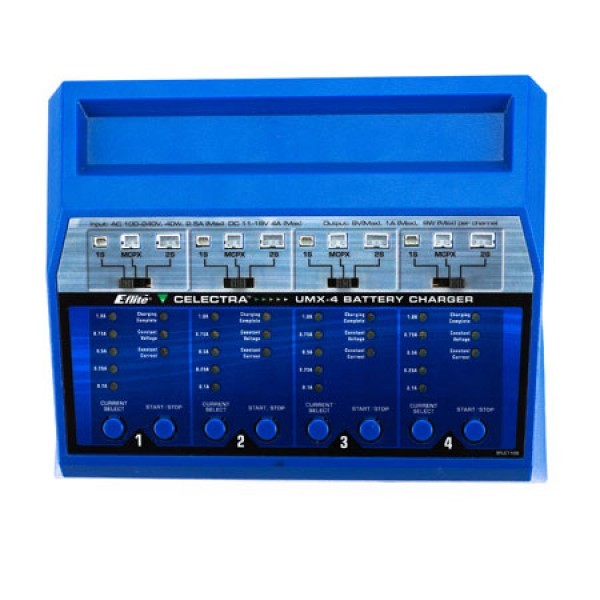

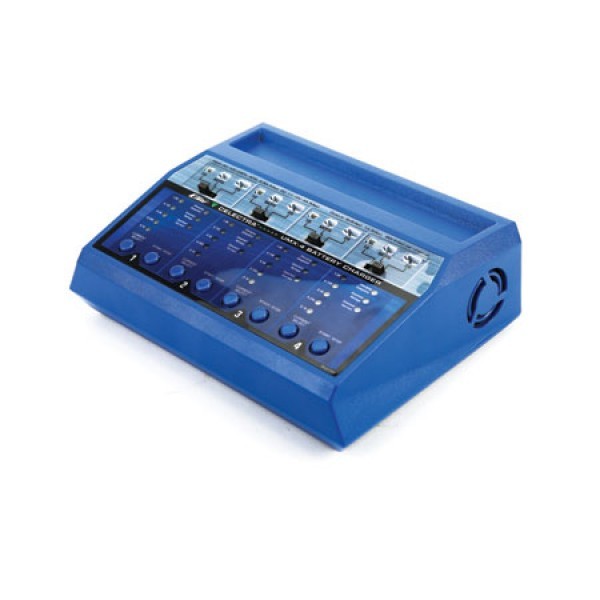

Ideal for charging any combination, of up-to four 30–500mAh, 1S UM and MCPX batteries as well as 2S battery packs equipped with the 3-wire JST-PH plug featured on UMX-class airplanes and helicopters. Its AC/DC capability means that you have the option to use a separate DC power supply or simply connect the charger to a household wall outlet. Built-in sockets make it easy to connect single-cell batteries. In addition, UM battery leads are provided when preferred by the user. The rugged case features four independently functioning charge circuits, each with a simple LED status display. All four ports have 9 watts of dedicated power and five selectable charge rates from 0.1–1.0A. Built-in protection features guard against short circuit, over current and reverse polarity.

  • Compact, rugged design
  • All four ports can be used simultaneously or one at a time
  • Four independently functioning charge circuits each with a simple LED status display
  • 9 Watts of dedicated power per port
  • Five selectable charge rates from 0.1–1.0A
  • Each port is suitable for charging one 30–150mAh, 1S UM cell, a 1S MCPX cell, or one 120–300mAh 2S pack equipped with a JST-PH, 3-wire connector
  • Works with Blade®, E-flite® and ParkZone® ultra micro Li-Po batteries
  • Operates on 100–240V AC (50/60Hz) or 11–18V DC input voltage
  • Built-in protection features guard against short circuit, over current and reverse polarity
  • Detachable AC and DC power cords and 1S battery extension leads included
Input
100-240V AC or 11-18V DC
# Cells
1-2 LiPo
Input Connector
AC cord, Australian plug, DC cord, alligator clips
Output Connector
Ultra Micro, 2S
Battery Type
LiPo
Cooling Method
Convection Cooled
LED
Yes
Length
7.09 in (180mm)
Width
5.51 in (140mm)
Height
2.17 in (55mm)
Overload Protection
Yes
SKU EFLC1105AU
Brand E-Flite
