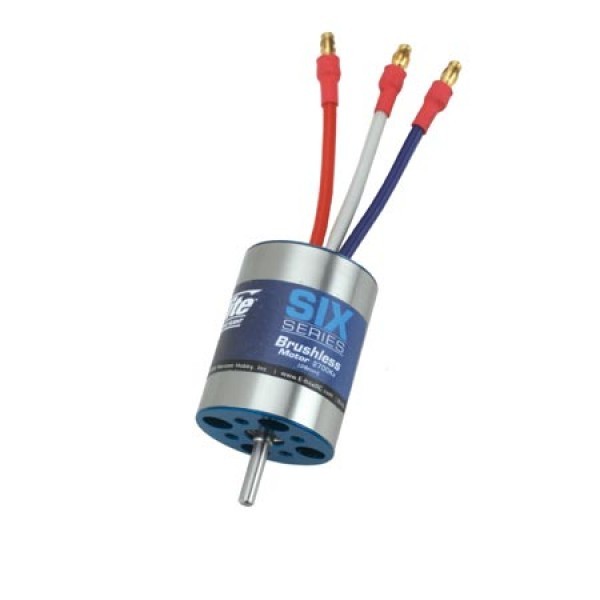

Six-Series Brushless 6-pole motors are high-torque motors suitable for either direct drive or geared applications. They feature the same diameter and mounting hole pattern as brushed 400 and 480 motors so they make excellent upgrades for these classes of models. Six-Series motors are ideal for direct-drive applications such as hotliners and other LMR products weighing 18- to 28-ounces. They are also ideal for 3D and aerobatic models weighing 28- to 35-ounces, and for scale park flyers weighing 25- to 40-ounces, when using a gearbox. This is a perfect match for aerobatic and 3D models like the E-flite Brio 10 (EFL2275) when using a gearbox, and pylon racers and hotliners when using direct drive.

  • Perfect match for 3D and aerobatic models weighing 28–35 oz (790–990 g) using a gearbox
  • Ideal for scale park flyers weighing 25–40 oz (710–1140 g) using a gearbox
  • Ideal direct-drive motor in models 18–28 oz (510–800 g)
  • Ideal for models requiring up to 400 watts of power
  • Perfect upgrade for brushed 400 and 480 motors with same diameter and mounting hole pattern
  • High-torque, 6-pole slotted rotor design
  • Includes connectors, prop adapter and mounting hardware
  • High-quality construction with ball bearings and hardened steel 3.2mm shaft
Type
6-pole inrunner
Size
400/480 upgrade
Bearings or Bushings
Two 4 x 10 x 4mm Bearings
Recommended Prop Range
5x4 to 6x5.5 direct drive or 10x6 to 12x6 with 2:1 to 3:1 gearbox
Voltage
7.2–12
RPM/Volt (Kv)
2700
Resistance (Ri)
.03 ohms
Idle Current (Io)
2.05A @ 10V
Continuous Current
34A
Maximum Burst Current
42A (15 sec)
Cells
6–10 Ni-MH/Ni-Cd or 2–3S Li-Po
Speed Control
35–45A brushless
Weight
80 g (2.9 oz)
Overall Diameter
28mm (1.10 in)
Shaft Diameter
3.17mm (1/8 in)
Overall Length
36mm (1.40 in)
SKU EFLM2005
Brand E-Flite
