Features

  • Tool-free I-strut installation for fast field assembly
  • Powerful 50-size brushless motor
  • Specially tuned motor compatible with 3S and 4S batteries without the need for modifications or upgrades
  • Easy to complete final assembly
  • Spektrum 6-channel AR636A DSMX receiver
  • Durable Spektrum metal-gear mini servos
  • Receiver loaded with a Smart Transmitter Model File that allows you to import all settings for NX and iX series transmitters during the binding process
  • High-strength aluminum landing gear with matching finish
  • Large control surfaces with double-beveled hinge lines
  • Accepts a 4400mAh 6S 22.2V Li-Po battery (sold separately)
  • Rigid Carbon-Z construction delivers a strong yet lightweight airframe
  • Skip Stewart Airshows officially licensed adaptation
  • AS3X technology enhances precision for a rock-solid feel
  • High-voltage 70A brushless speed control
  • Highly-tuned airframe for extreme aerobatics by Mike McConville
  • Compatible with the Spektrum DXS transmitter included with many of the most popular E-flite and HobbyZone trainer airplane models
  • Large main wheels plus a hidden steerable tailwheel to operate from paved, dirt, and some grass surfaces
  • Large and convenient top-mounted hatch provides easy access to the battery

Product Information

Once called the “Spitfire of World War One” and considered by many pilots to be the best British single-seat fighter of the time, the Royal Aircraft Factory (RAF) SE5 was instrumental in regaining and maintaining allied air superiority in mid-1917. It's one of the most recognizable aircraft of the era, and six manufacturers constructed more than 5000 examples. Inspired by the original ParkZone model, the E-flite® SE5a 900mm features an all-new design that includes more scale detail along with modern-day features and technologies to deliver an unmatched flying experience with surprising capabilities and performance. It bolts and snaps together in almost no time and is small enough to be easy to store and transport without disassembly – so it can be flown at large parks, sports fields, and RC flying fields, too. The BNF Basic version is equipped with enhanced AS3X+® technology that smooths out the effects of wind and turbulence better than ever before. It's also equipped with optional-use SAFE® Select technology that makes it even easier to fly! Both versions include Spektrum™ digital, metal-geared servos, a 45A Smart Lite ESC, plus a 3S and 4S compatible motor.

E-flite S.E.5a 900mm RC Airplane Overview

The SE5 is one of the most iconic fighters of WWI, yet it's rarely modeled in any scale for RC. The E-flite® SE5a 900mm is a conveniently sized replica that offers unmatched scale detail, modern-day conveniences, features, and technologies to deliver truly unexpected levels of flight performance! It's capable of slow and smooth scale flying plus basic aerobatics – and if you crank up the throws, it's also capable of surprisingly aggressive aerobatics, including snaps, “pop tops,” and more. This makes it more fun for intermediate to experienced pilots to fly than any other SE5 model!

It features a variety of scale details, including molded-in ribs, radiator and exhaust details, machine guns and pilot figure with a scarf, plus optional-use elastic flying wires. Functional features include large scale main wheels and a hidden steerable tailwheel, along with wings and struts that bolt and snap into place for easy assembly and disassembly. Yet it's sized to be easy to store and transport without disassembly and so it can be flown at large parks, sports fields, and RC flying fields. The factory-installed digital and metal-geared servos provide precise and reliable control at every speed. And the power system includes a Spektrum™ outrunner motor and an Avian 45-amp Smart Lite ESC compatible with popular 3S and 4S 2200-3200mAh batteries. The BNF Basic version is also equipped with a factory-installed Spektrum AR631+ receiver featuring exclusive and enhanced AS3X+® along with optional-use SAFE® Select technologies. Plus, both versions are factory-finished in the classic Royal Flying Corps two-tone with roundels trim scheme.

E-flite S.E.5a 900mm RC Airplane Features



Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite T-28 Trojan 1.1m, Valiant 1.2m, Commander mPd 1.4m, Turbo Timber Evolution 1.5m, or other similar class models before attempting to fly the SE5a 900mm BNF Basic version.

Smart Technology for the E-flite S.E.5a 900mm RC Airplane
Smart Technology

The SE5a 900mm is equipped with an exclusive Spektrum Avian Smart Lite ESC that can provide a variety of real-time power system-related telemetry data including motor RPM, current, battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR631+) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, the receiver is loaded with a Smart Transmitter Model File that allows you to import all settings for NX and iX series transmitters during the binding process.

Flexible Power for the E-flite S.E.5a 900mm RC Airplane
Flexible Power

The factory-installed Spektrum brushless outrunner motor is 3S and 4S compatible to offer a wide range of “mild to wild” performance – from scale flying and performing basic aerobatics with 3S batteries to unlimited vertical plus unexpected aggressive aerobatic performance with 4S batteries! The convenient top-mounted and magnetically secured hatch makes installing and removing common and popular 2200–3200mAh batteries easy.

Durable Precision for the E-flite S.E.5a 900mm RC Airplane
Durable Precision

The lightweight yet durable EPO airframe is composite reinforced for added strength. And the factory-installed digital and metal-geared servos deliver reliable and precise control at every speed to perform slow and scale-like to aggressive aerobatic flying with confidence.

Abundant Scale Detail for the E-flite S.E.5a 900mm RC Airplane
Abundant Scale Detail

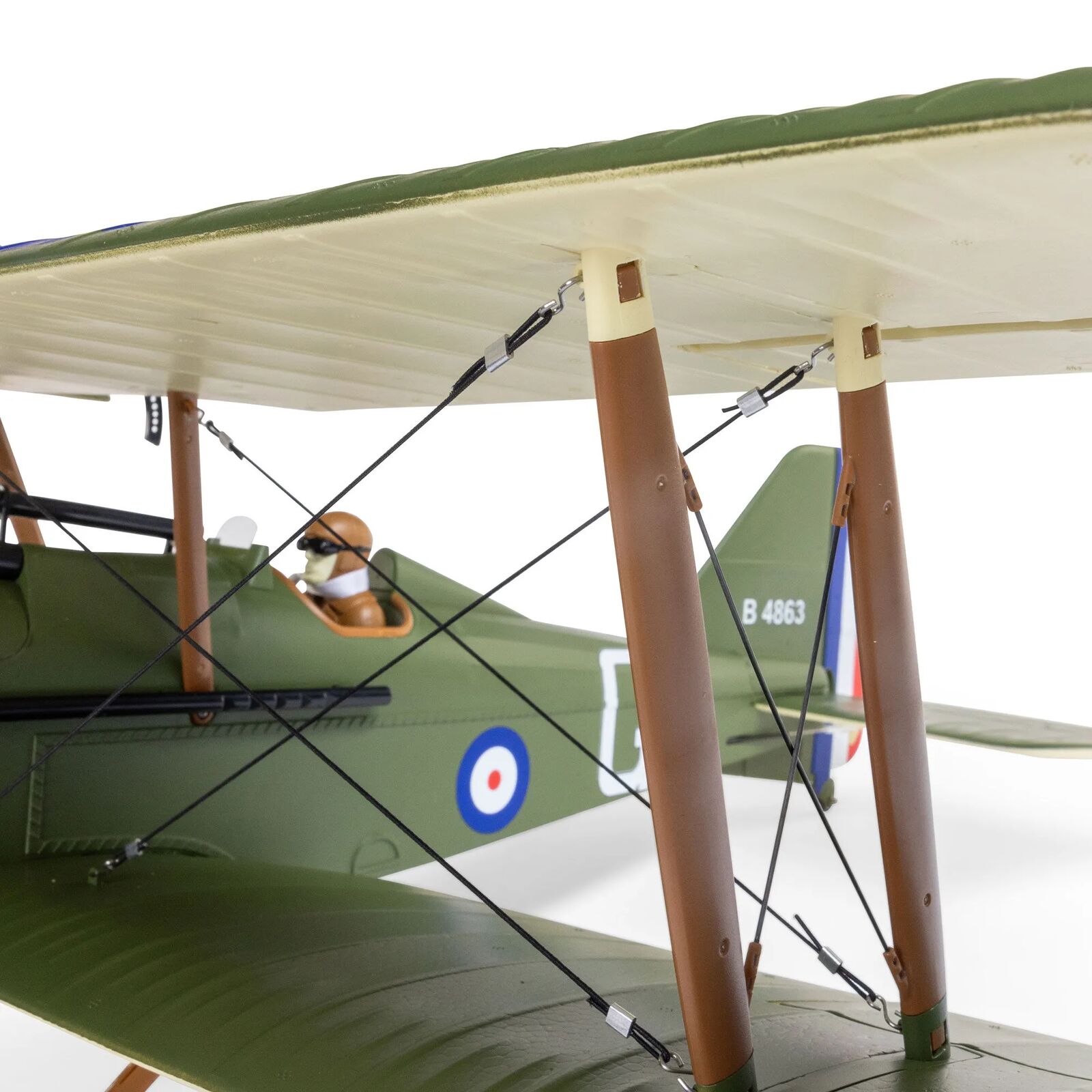

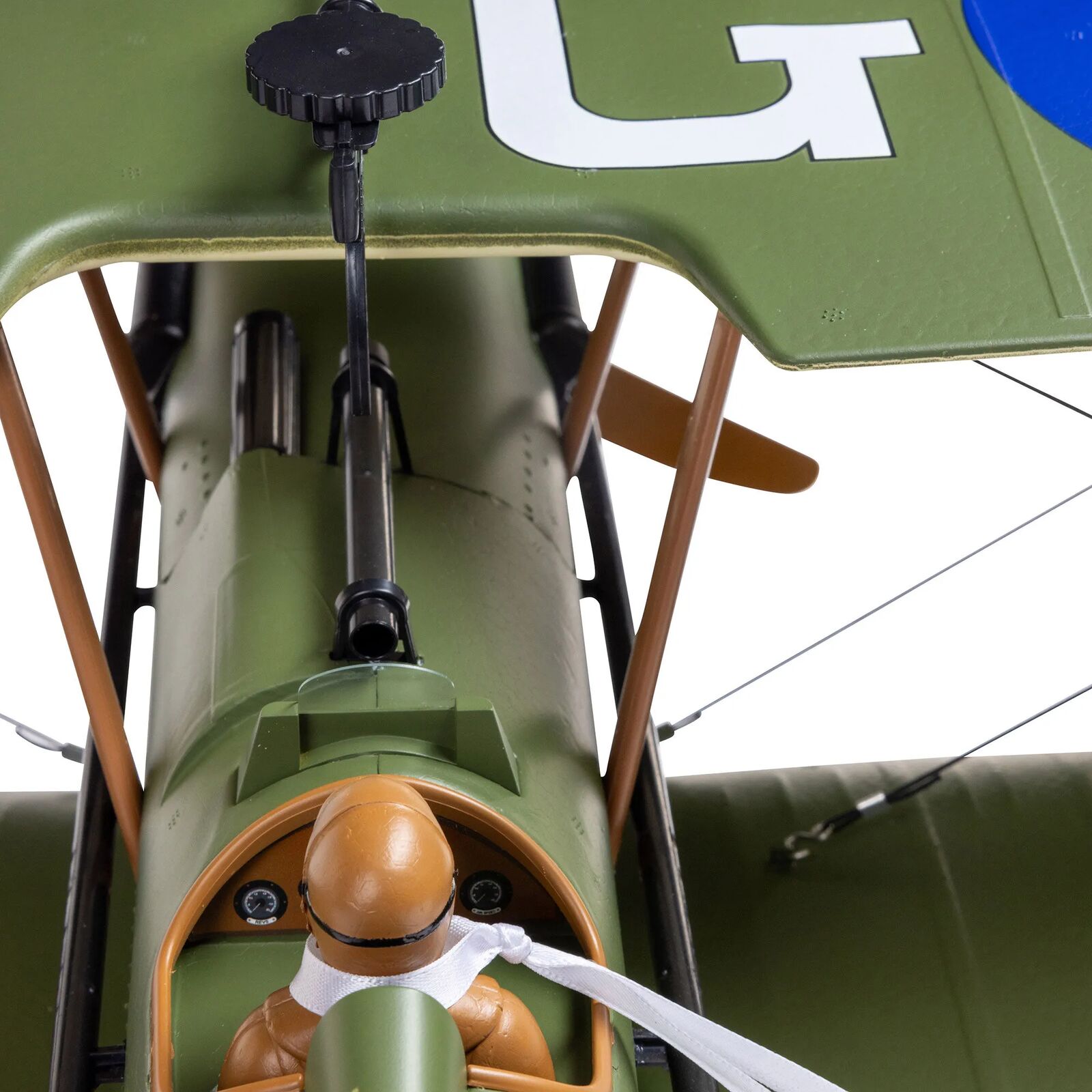

The SE5a is equipped with an abundance of scale detail, including molded-in ribs, radiator and exhaust details, machine guns, a pilot figure with a scarf, and optional-use elastic flying wires.

Easy Assembly for the E-flite S.E.5a 900mm RC Airplane
Easy Assembly

No glue or special tools are required for final assembly so you can have the SE5a 900mm ready to fly in less time than it takes to charge a battery! And although it's conveniently sized to fit fully assembled in almost any vehicle, you can remove the one-piece wings for easier storage and transport. Just a few screws and struts that snap into and out of place easily mean you can remove/install the wings in just a few minutes.

What you need

  • Full-range 4–5+ channel Spektrum DSMX/DSM2 compatible transmitter 
  • 3S 11.1V or 4S 14.8V 2200–3200mAh LiPo with EC3 or IC3 Connector
  • Compatible LiPo charger 

Specs

Wingspan
35.4" (899 mm)
Power Type
Electric
Battery
Sold Separately
Connector Type
EC3, IC3
Product Length
28.2" (716 mm)
Skill Level
Level 2
Completion Level
Bind-N-Fly
Product Weight
Without Battery: 38.2oz (1084g) / With Recommended Battery: 45.9oz (1303g)
Propeller Size
10 x 5
Servos
Included
Approximate Assembly Time
Less than 1 Hour
Minimum Required Radio
Full-range 4–5+ channel Spektrum DSMX/DSM2 compatible transmitter
Motor Size
3513-1100Kv 14-pole
Receiver
Included
Minimum Speed Control
45-Amp Smart Lite Brushless ESC
Radio
Sold Separately
Charger
Sold Separately
Material
EPO
Speed Control
Included
CG (Center of Gravity)
72mm +/-5mm
Motor Type
Brushless
LiPo Compatibility
3S, 4S
Technology
AS3X+, SAFE Select, Smart
Recommended Motor Battery
3S 11.1V or 4S 14.8V 2200–3200mAh LiPo with EC3 or IC3 Connector
  • Easy to complete final assembly
  • Skip Stewart Airshows officially licensed adaptation
  • Highly-tuned airframe for extreme aerobatics by Mike McConville
  • Rigid Carbon-Z® construction delivers a strong yet lightweight airframe
  • AS3X® technology enhances precision for a rock-solid feel
  • Powerful 50-size brushless motor
  • High-voltage 70A brushless speed control
  • Spektrum™ 6-channel AR636A DSMX® receiver
  • Durable Spektrum metal-gear mini servos
  • Accepts a 4400mAh 6S 22.2V Li-Po battery (sold separately)
  • High-strength aluminum landing gear with matching finish
  • Large control surfaces with double-beveled hinge lines
  • Tool-free I-strut installation for fast field assembly
Wingspan
48.0 in (1219mm)
Overall Length
49.3 in (1252mm)
Wing Area
840 sq. in. (54.2 sq. dm)
Flying Weight
7.0 lb (3.2 kg)
Motor Size
BL50, 525Kv brushless outrunner
Servos
(4) 25-gram mini metal-gear servos
Prop Size
15 x 5.5, 2-blade
Speed Control
70-amp brushless ESC
Recommended Battery
4400mAh 6S 22.2V 30C
Approx. Flying Duration
4 to 5 minutes (approx.)
Scale
20%-Scale
Experience Level
Advanced
Recommended Environment
Outdoor
Assembly Time
Less than 1 Hour
