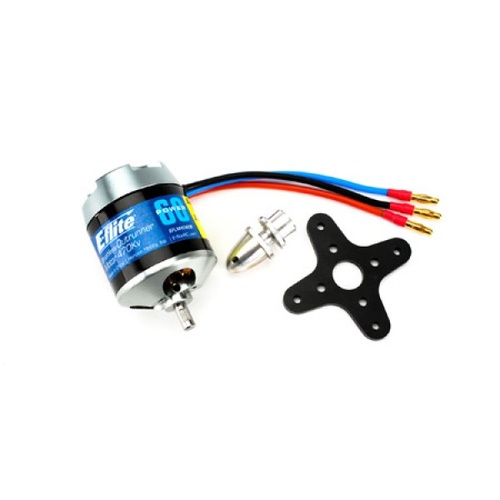

Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.

Features

  • Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
  • High torque, direct drive alternative to brushless inrunner motors
  • Includes mount, prop adapter and mounting hardware
  • Quiet, efficient operation
  • External radial rotor design
  • Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
  • High torque, direct drive alternative to brushless inrunner motors
  • Includes mount, prop adapter and mounting hardware
  • Quiet, efficient operation
  • External radial rotor design
Type
Brushless outrunner
Size
Replacement for 60-size glow engines
Bearings or Bushings
One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings
Wire Gauge
14 AWG
Recommended Prop Range
15 x 8 - 17 x 7 electric propeller
Voltage
22.2V (6S LiPo, 4400-5000mAh)
RPM/Volt (Kv)
470Kv
Resistance (Ri)
0.02 ohm
Idle Current (Io)
2.1A @ 20V
Continuous Current
65A
Maximum Burst Current
80A for 15 seconds
Speed Control
80A brushless
Weight
13.0 oz (380 g)
Overall Diameter
2.00 in (50mm)
Shaft Diameter
0.24 in (6.0mm)
Overall Length
2.40 in (62mm)
SKU EFLM4060B
Barcode # 605482107980
Brand E-Flite
Shipping Weight 0.0500kg
