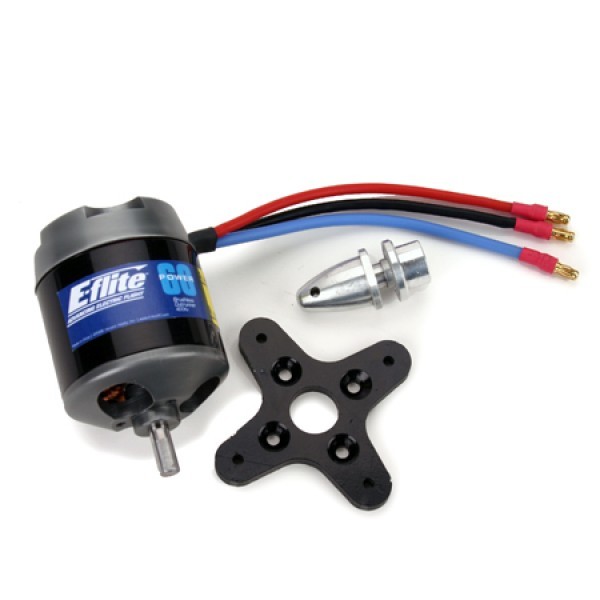

The Power 60 is designed to deliver clean and quiet power for 60-size sport and scale airplanes weighing 6 to 10 pounds (2.7–4.5 kg), 46-size 3D airplanes up to 7 pounds (3.2 kg), or models requiring up to 1700 watts of power. It’s an especially good match for Hangar 9 .60-size warbirds like the Corsair 60 (HAN2575), P-47D Thunderbolt 60 (HAN2975), P-40 Warhawk 60 (HAN2850), P-51 Mustang 60 (HAN2375), P-51 Miss America 60 (HAN2775) and .46-size 3D planes such as the Hangar 9 Funtana 40 (HAN1975) or Seagull Harrier 46 (SEA3025).

  • Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
  • Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
  • Ideal for models requiring up to 1700 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation
Type
Brushless outrunner
Size
Replacement for 60-size glow engines
Bearings or Bushings
One 6 x 15 x 5mm Bearing, and Two 6 x 12 x 4mm Bearing
Wire Gauge
14
Recommended Prop Range
14x8 to 16x10
Voltage
18.5 to 28.8
RPM/Volt (Kv)
400
Resistance (Ri)
.06 ohms
Idle Current (Io)
2.70A @ 10V
Shaft Diameter
6mm (.24 in)
Overall Length
62mm (2.40 in)
Weight
380 g (13.0 oz)
Overall Diameter
50mm (2.00 in)
Diameter
50mm (2 in)
Length
62mm (2.4 in)
Continuous Current
55A
Maximum Burst Current
65A (15 sec)
Cells
16–24 Ni-MH/Ni-Cd or 5–7S Li-Po
Speed Control
60A brushless
SKU EFLM4060A
Barcode # 605482773864
Brand E-Flite
Shipping Weight 0.0500kg
