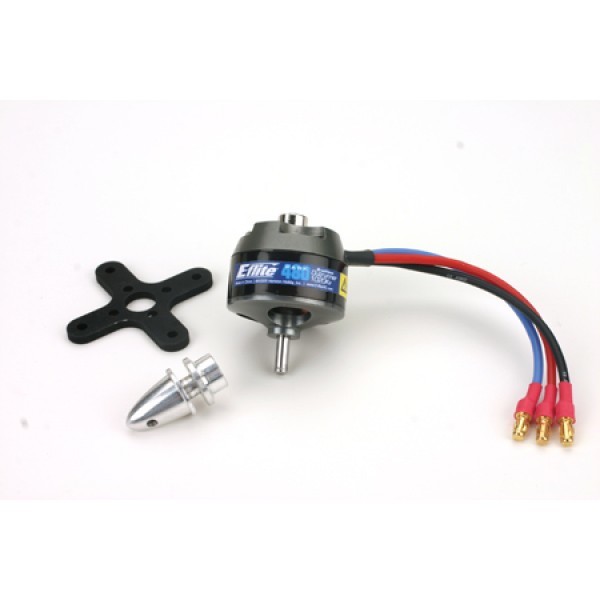

The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.

  • Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
  • Ideal for scale park flyers 25–35 oz (710–990 g)
  • Ideal for models requiring up to 275 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters, and mounting hardware
  • External rotor design—4mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation
Type
Brushless outrunner
Size
Park flyer
Bearings or Bushings
One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing
Wire Gauge
16
Recommended Prop Range
10x7 to 12x6
Voltage
7.2 to 12
RPM/Volt (Kv)
1020
Resistance (Ri)
.06 ohms
Idle Current (Io)
1.10A @ 8V
Continuous Current
22A
Maximum Burst Current
28A (15 sec)
Cells
6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Speed Control
25A to 40A brushless
Weight
87 g (3.1 oz)
Overall Diameter
35mm (1.40 in)
Shaft Diameter
4mm (.16 in)
Overall Length
33mm (1.30 in)
SKU EFLM1505
Barcode # 605482774243
Brand E-Flite
Shipping Weight 0.0500kg
