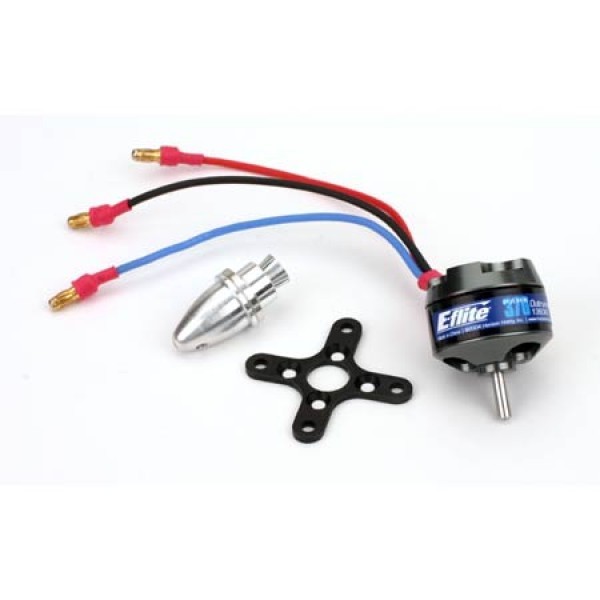

E-flite’s new Outrunner series of high-quality brushless motors provides great efficiency and light weight—just 1.6 ounces. They’re ideal for small electric airplanes. such as the E-flite Tensor 4D.

  • Great upgrade for Speed 280 and Speed 370 applications
  • Excellent motor for small 3D airplanes weighing 7–14 oz (200–400 g)
  • Slotted 12-pole outrunner design
  • Extremely lightweight—just 1.6 ounces
  • High-torque, direct-drive motor—no gearbox necessary
  • Motor mount, prop adapter and all hardware included
  • External rotor design with front shaft for easy mounting
  • Includes gold bullet connectors
  • Ideal for models requiring up to 150 watts of power
Type
Brushless outrunner
Size
Replacement for 280/370
Bearings or Bushings
Bearings (One 3.175 x 7.94 x 3.6mm Bearing, and One 3.175 x 9.525 x 3.97mm Bearing)
Recommended Prop Range
8 x 3.8 to 10 x 4.7
Voltage
7.2–12
RPM/Volt (Kv)
1360Kv
Resistance (Ri)
.10 ohms
Idle Current (Io)
1.00A @ 10V
Shaft Diameter
3.17mm (1/8 in)
Overall Length
25mm (1.00 in)
Weight
45 g (1.6 oz)
Overall Diameter
28mm (1.10 in)
Diameter
28 mm (1.1 in)
Length
25 mm (1 in)
Continuous Current
12A
Maximum Burst Current
15A (15 sec)
Cells
6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Speed Control
10–20 amp brushless
SKU EFLM1205
Barcode # 605482770016
Brand E-Flite
Shipping Weight 0.0500kg
