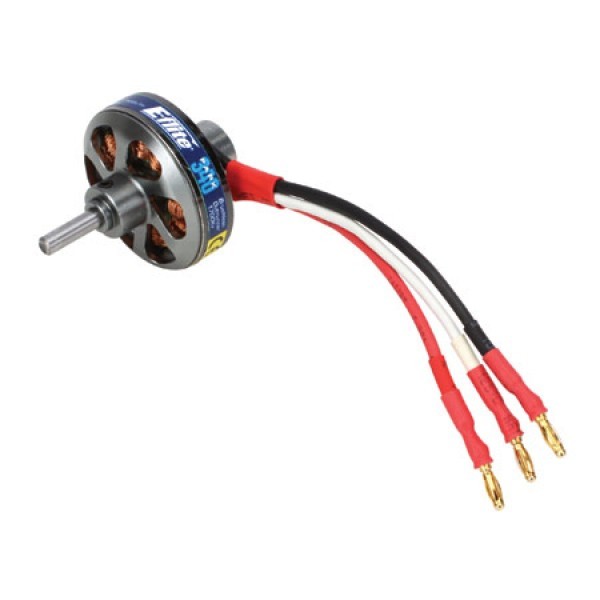

The Park 340 brushless outrunner motor is ideal for 3D models 7.00–11.00 oz (198–311 g) and sport and scale models 9.00–15.0 oz (255–425 g) or small indoor airplanes requiring up to 145 watts of power.

  • Upgraded performance from the Park 300 motor
  • Extremely quiet and lightweight—just 0.96 oz (27.0 g)
  • Integrated prop-saver design and designed for firewall mount

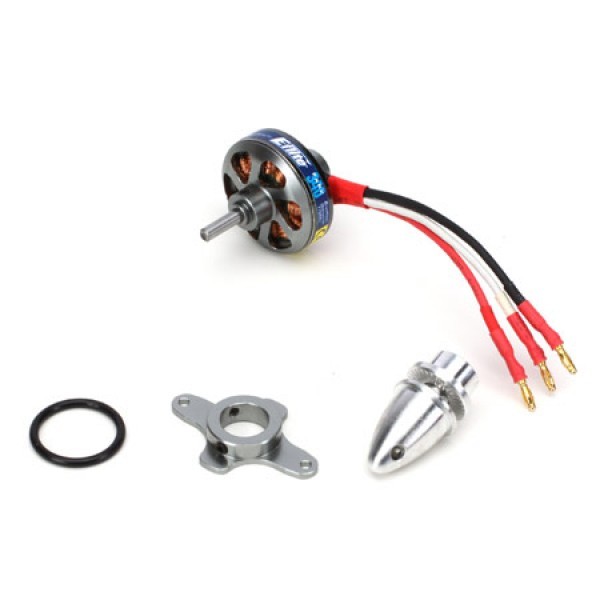

  • Mount, prop adapter and hardware included
Type
Brushless Outrunner
Size
340
Wire Gauge
20 AWG
Recommended Prop Range
2S: 7 x 3.5 to 8 x 4.3; 3S: 6 x 4 to 6 x 5.5
Voltage
7.4V - 11.1V
RPM/Volt (Kv)
1700
Resistance (Ri)
0.115Ω
Idle Current (Io)
0.720A @ 8V
Continuous Current
11.5A
Maximum Burst Current
14.0A
Cells
2S-3S LiPo or 6- to 10-cell NiMH/NiCd
Speed Control
15-Amp
Weight
0.96 oz (27.2 g)
Overall Diameter
1.1 in (28mm)
Shaft Diameter
0.12 in (3.2mm)
Shaft Length
1.47 in (37.5mm)
SKU EFLM1155
Barcode # 605482032886
Brand E-Flite
Shipping Weight 1.0000kg
