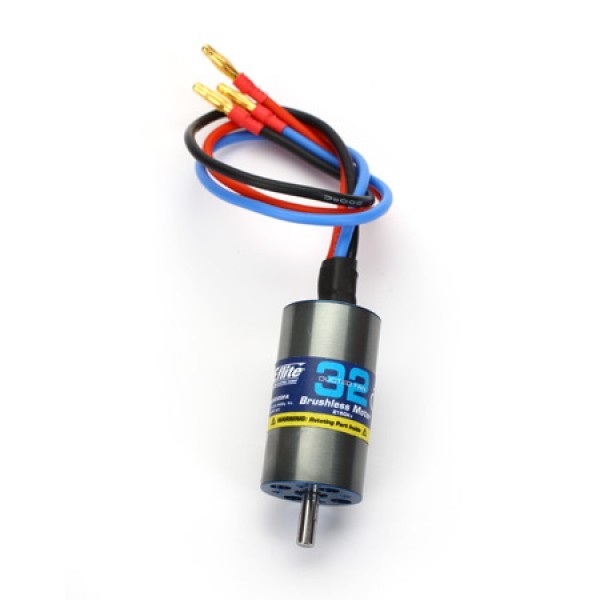

E-flite's BL32 DF Brushless Motor is an ideal choice for products such as E-flite’s Habu 32 DF and other similar-sized ducted fan airplanes when using the purpose-built Delta-V 32 80mm EDF (EFLDF32). The motor will provide great performance in 80mm diameter fan units requiring a 28mm inrunner motor.

  • 6-pole design
  • Ideal for 80mm EDF Units
  • Includes mounting hardware
  • Purpose-built for the E-flite® Delta-V® 32 80mm EDF unit
  • Up to 1,400 continuous input watts or 1,665 maximum burst
  • High-quality construction with ball bearings and hardened steel shaft
Type
Brushless Inrunner
Size
32-size for Ducted Fans
Bearings or Bushings
Bearings
Wire Gauge
14 AWG
Voltage
14.8V - 22.2V
RPM/Volt (Kv)
2150Kv
Resistance (Ri)
0.026Ω
Idle Current (Io)
2.6A @ 20V
Continuous Current
62A
Maximum Burst Current
75A
Cells
4S-6S Li-Po or 14-18 cells NiCd/NiMH
Speed Control
80A
Weight
5.70 oz (162g)
Overall Diameter
1.10 in (28.0mm)
Shaft Diameter
0.20 in (5.0mm)
Overall Length
2.00 in (52.0mm)
SKU EFLM3032DFA
Barcode # EFLM3032DFA
Brand E-Flite
Shipping Weight 0.2000kg
