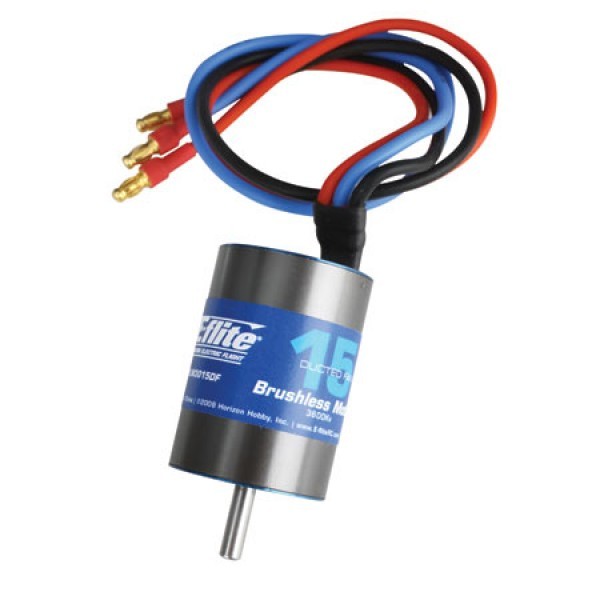

E-flite's BL15 DF Brushless Motor is an ideal choice for products such as E-flite’s BAe Hawk 15 DF and other similar-sized ducted fan airplanes when using the purpose-built Delta-V 15 69mm EDF (EFLDF15). The motor will provide great performance in 68–70mm diameter fan units requiring a 28mm inrunner motor.


Specifications

Recommended Ducted Fan Unit: Delta-V 15 69mm EDF (EFLDF15)

Static Thrust: 1.7 lb on 3S (11.1V)—using recommended Delta-V 15

2.8 lb on 4S (14.8V)—using recommended Delta-V 15

RPM: 31,000 on 3S (11.1V)—using recommended Delta-V 15

40,000 on 4S (14.8V)—using recommended Delta-V 15

Brushless ESC: 50A—60A

  • Purpose-built for the Delta-V 15 69mm EDF (EFLDF15)
  • Ideal for 68–70mm EDF units requiring a 28mm diameter inrunner motor
  • Ideal for up to 850 input watts
  • High-quality construction with ball bearings and hardened steel shaft
  • 6-pole design
Type
6-pole Inrunner Brushless
Size
15-size for Ducted Fans
Bearings or Bushings
Two 4 x 10 x 4mm Bearings
Voltage
11.1–16.8V
RPM/Volt (Kv)
3600
Resistance (Ri)
.02 ohms
Idle Current (Io)
2.80A @ 10V
Continuous Current
46A
Maximum Burst Current
55A (15 sec)
Cells
3S–4S LiPo power 10–14 Ni-MH/Ni-Cd battery
Speed Control
60A brushless
Weight
106 g (3.7 oz)
Overall Diameter
28mm (1.10 in)
Shaft Diameter
4mm (0.16 in)
Overall Length
40mm (1.56 in)
SKU EFLM3015DF
Barcode # 605482655580
Brand E-Flite
Shipping Weight 1.0000kg
