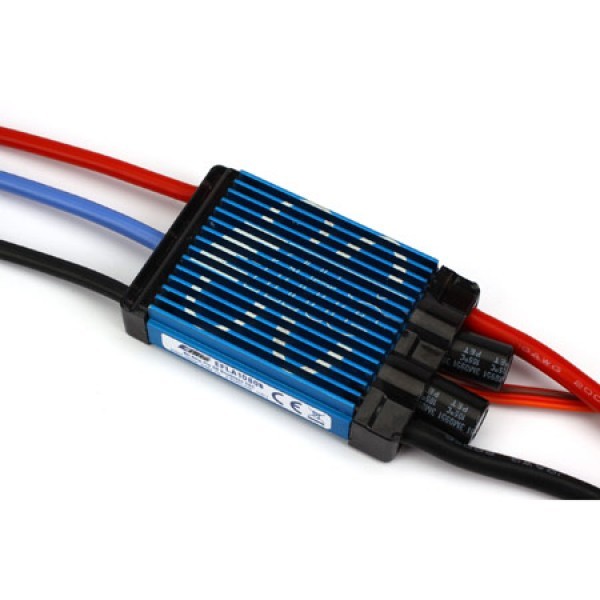

When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.

This product is not intended for use by children under 14 years of age without direct adult supervision.

  • Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
  • 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
  • Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
  • 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start-up rate - .25 second or 1 second
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
  • Two operating modes–Airplane or Heli
  • Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
Forward
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
80A
Input Connector Types
EC5, 10AWG
Output Connector Types
4mm gold bullet, 12AWG
Momentary Peak Current
100A (15 seconds) Proper Cooling Required
Length
3.0 in (77mm)
Width
1.6 in (41mm)
Height
0.62 in (15.5mm)
Weight
3.75 oz (106 g)
BEC Voltage
5.5 Volt switch-mode
Overload Protection
Yes
Wire Gauge
10 awg input leads; 12 awg output leads
Cells w/BEC
9- to 18-cell Ni-MH, 3–6S Li-Po
Auto Cutoff
Yes
SKU EFLA1080B
Barcode # 605482053102
Brand E-Flite
Shipping Weight 1.0000kg
