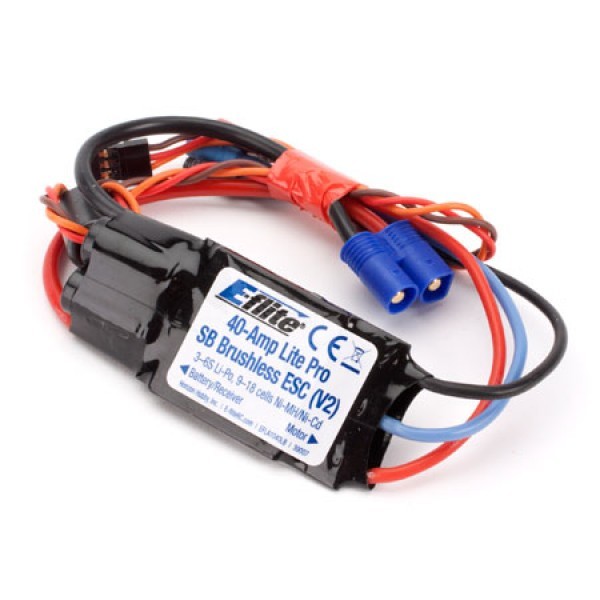

The E-flite® 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

  • Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
  • 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
  • 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges, use with a large variety of brushless motors
Continuous Maximum Current
40A (Proper cooling and airflow required)
Input Connector Types
13 AWG with E-flite EC3 Connector
Output Connector Types
16 AWG with 3.5mm Gold Bullet Connectors
Length
66.0mm (2.60 in)
Width
31.0mm (1.20 in)
Height
12.0mm (0.47 in)
Weight
48.0 g (1.70 oz)
Cells w/BEC
3–6S Li-Po or 9–18 Ni-MH/Ni-Cd
SKU EFLA1040LB
Barcode # 605482079171
Brand E-Flite
Shipping Weight 1.0000kg
