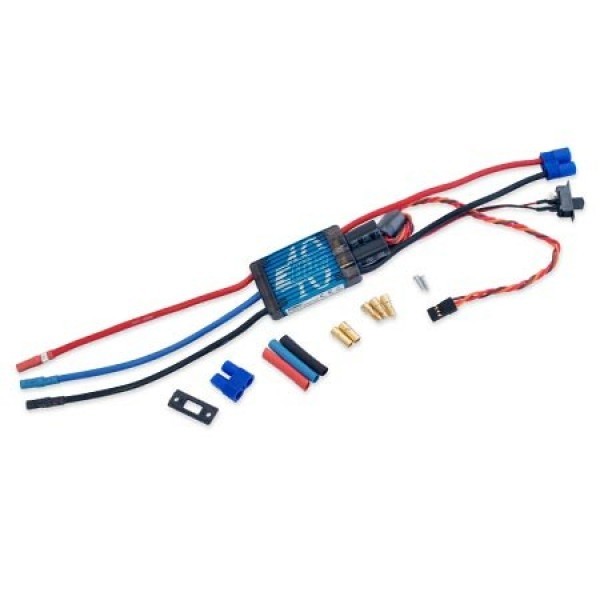

E-flite 40-Amp Pro Switch-Mode BEC Brushless ESC (V2) is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

  • Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
  • 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-sized servos with the BEC
  • 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
  • Finned heat sinks
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 70% of battery starting voltage
  • Programmable throttle input range
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges to use with a large variety of brushless motors
  • Utilizes new smaller Mosfet technology to minimize weight
  • Radio System Power ON /OFF Switch
  • Prewired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Continuous Maximum Current
40A (Proper cooling and airflow required)
Input Voltage
3–6S Li-Po or 9–18 Ni-MH/Ni-Cd
Input Connector Types
13 AWG with E-flite EC3 Connector
Output Connector Types
13 AWG with 3.5mm Gold Bullet Connectors
Momentary Peak Current
55A (15 sec) (Proper cooling and airflow required)
Length
68.0mm (2.70 in)
Width
33.0mm (1.30 in)
Height
13.0mm (0.50 in)
Weight
62.0 g (2.20 oz)
SKU EFLA1040B
Barcode # 605482079188
Brand E-Flite
Shipping Weight 0.2000kg
