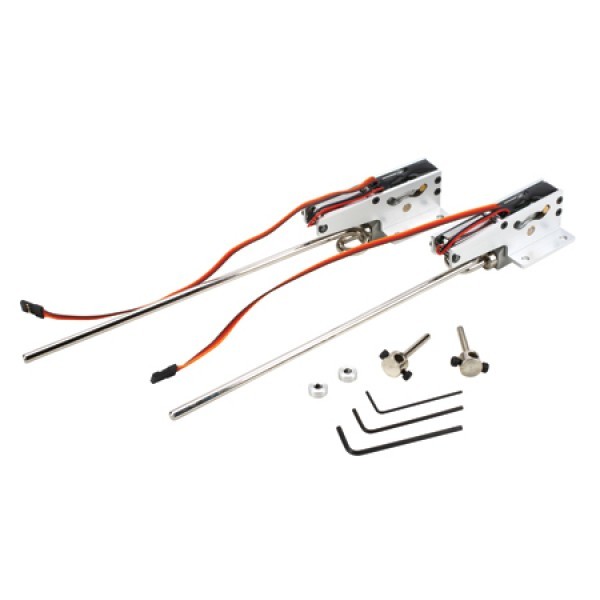

E-Flite 25 - 46 100 Deg Rotating Electric Retracts

  • All-aluminum, CNC-machined retract unit
  • Integrated electric motor with a micro PCB eliminating the need for a retract servo
  • Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
  • Built-in over-current protection
  • Scale-appearance 100-degree retraction sweep and 90-degree rotation
  • Chrome-plated landing gear strut
  • Recommended for use in the Hangar 9® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)
Application
Airplane
Plate Dimensions
40mm (W) x 42.5mm (L)
Hole Spacing
30mm (W) x 28mm (L)
Speed
3 seconds per cycle
Weight
3.7 oz (105 g) each
Connector Type
Universal
Gear Material
Steel/Brass
Current Draw Idle
5mA
Current Draw Stall
800mA (per retract)
Voltage
4.8–7.2V
SKU EFLG320
Barcode # 605482009864
Brand E-Flite
Shipping Weight 3.0000kg
