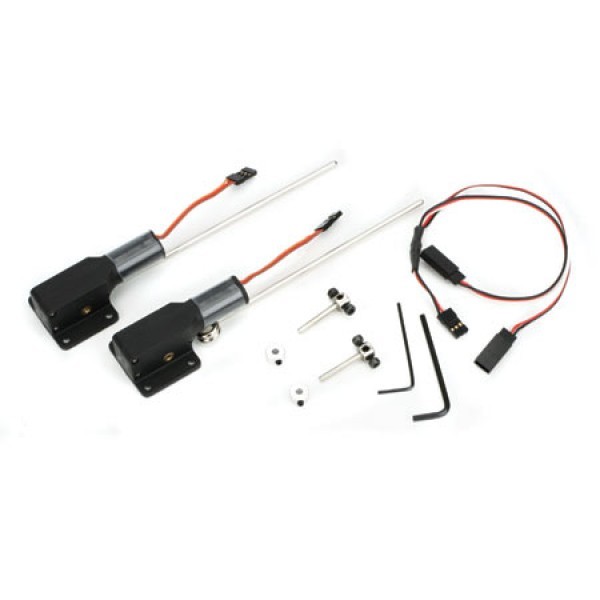

Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.

  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in overcurrent protection
  • Strut Diameter: 0.137 in (3.5mm)
  • Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)
Application
Aircraft 15- to 25-size
Speed
1.25 sec @ 4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
Weight
Main gear: 1.4 oz (39.5 g) each
Motor Type
Electric brushed can
Connector Type
JR, universal
Gear Type
Metal
Current Draw Idle
5mA
Current Draw Stall
200mA
Voltage
4.8V-7.4V
SKU EFLG200
Barcode # 605482776506
Brand E-Flite
Shipping Weight 3.0000kg
