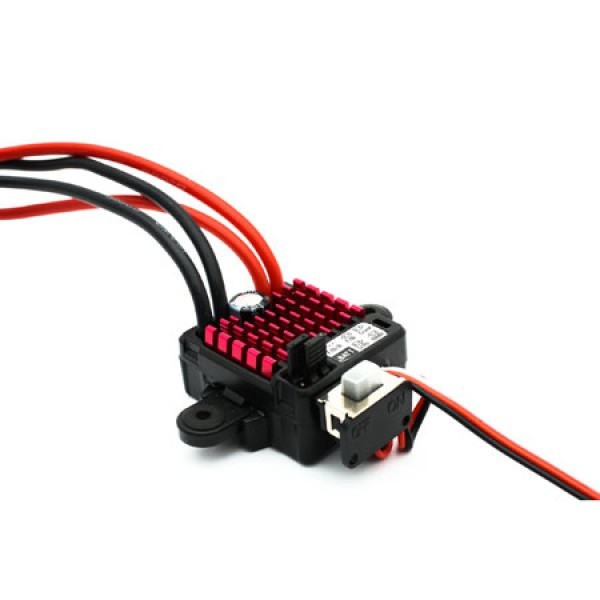

This waterproof, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.

Features

  • Water resistant
  • Compatible with LiPo and NiMH batteries
  • Utilises jumper pins
  • Can accommodate motors up to 8T
  • Mounting tabs are removable, allowing for installation in a variety of vehicles
  • Crawler running mode available
  • Comes pre-wired with EC3 battery connector and RTR-compatible motor bull
  • Waterproof for all weather operation
  • LiPo and NiMH compatible
  • Program functions changed with the use of jumper pins
  • Up to an 8T motor limit
  • Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles
  • Crawler running mode
  • Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation
Forward
Yes
Reverse
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
FWD: 60A REV: 30A
Input Voltage
2-3S Lipo, 5-9 cells NiMH/NiCd
Input Connector Types
EC3
Output Connector Types
3.5mm Tamiya style bullet
Motor Limit
2S Lipo/6cell NiMh >=8T 540/550 closed endbell motors, 3S Lipo/9cell NiMh >=13T 540/550 closed endbell motors
Momentary Peak Current
FWD: 360A REV: 180A
Length
1.48 in (37.5mm)
Width
1.46 in (37mm) without tabs, 2.23 in (56.6mm) with tabs
Height
0.71 in (18mm)
Weight
1.41 oz (40g)
BEC Voltage
5V
PWM Frequency
1KHz
Overload Protection
Yes
Full On Resistance
.0008 ohms
Wire Gauge
16AWG
Auto Cutoff
Yes
SKU DYNS2210
Barcode # 605482569467
Brand DYNAMITE
Shipping Weight 0.0500kg
