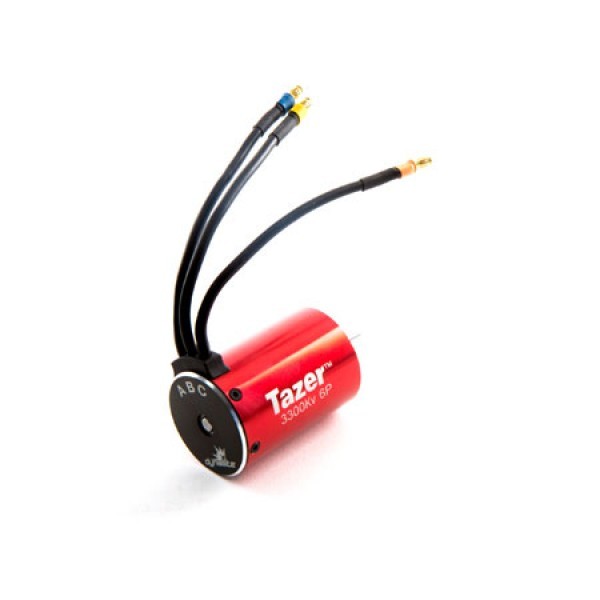

The 6-pole brushless motors are available with different Kv versions.

  • 6-pole design for high power and superior efficiency
  • mproved rotor and stator design for elevated power output and enhanced efficiency
  • Comes pre-wired for easy installation with bullet plugs
  • Ball bearing construction provides low drag and long life
  • Designed to work with most 1/10-scale sensorless brushless ESCs
Type
Brushless Inrunner
Size
540
Bearings or Bushings
Two 5X13mm Bearings
Timing
Not Adjustable
RPM/Volt (Kv)
3300Kv
Idle Current (Io)
3.0+/-0.5A @ 7.2V
Maximum Burst Current
120A
Cells
4 - 9 Ni-Cd / Ni-MH or 2-3S Li-Po
Weight
6.9oz (198g)
Overall Diameter
1.41 in (35.8mm)
Shaft Diameter
1/8 in (3.175mm)
Shaft Length
0.67 in (17mm)
Overall Length
2.05 in (52mm)
SKU DYNS1500
Brand DYNAMITE
