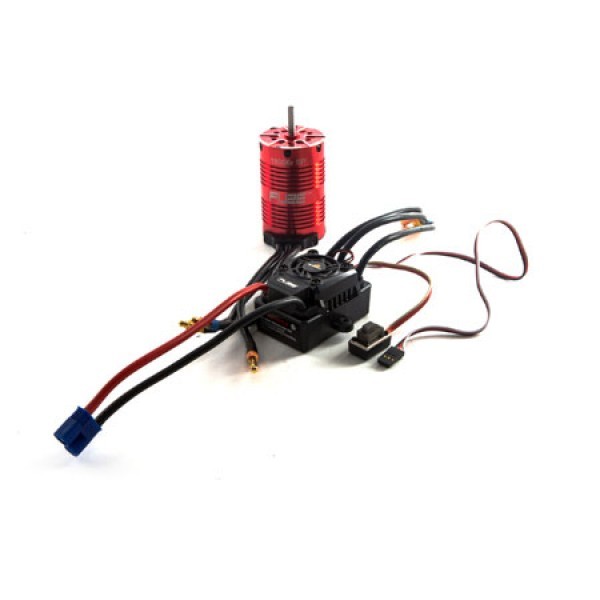

Dynamite’s brushless systems offer price sensitive enthusiasts the ultimate solution when searching for an easy and affordable method of stepping up to brushless power. Designed for most on and off road electric vehicles, each system comes with everything users need to upgrade to brushless power. Systems include a potent 6-pole sensorless brushless motor and waterproof ESC that comes pre-wired with a high-current EC series connector. The ESC is Ni-MH and Li-Po/Li-Fe compatible. And, as with all Dynamite power systems, motors and ESC’s are available separately.

Dynamite’s brushless systems are compatible with most 1/8th scale on and off‐road electric vehicles including 1/8th scale ECX, Losi, HPI, Traxxas, Associated and many more.

  • MOTOR: 6-pole design for high power and superior efficiency
  • Improved rotor and stator design for elevated power output and enhanced efficiencyImproved rotor and stator design for elevated power output and enhanced efficiency
  • Comes pre-wired for easy installation with bullet plugs
  • Ball bearing construction provides low drag and long life
  • Designed to work with most 1/8-scale sensorless brushless ESCs
  • ESC: Easier than ever to toggle between battery chemistries
  • Improved operation under heavy loads
  • Waterproof
  • Compact design for easy fit into most any 1/8th scale on and off road platform
  • Easy to program via your transmitter or compact program card. No need to haul around a PC
Forward
Yes
Reverse
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
130A
Input Voltage
6-12 cells NiMH - NiCd, 2-4 cells LiPo - LiFe
Motor Limit
2S LiPo - up to 6000KV, 3S LiPo - up to 4000KV, 4S - up to 3000KV
Momentary Peak Current
760A
Length
53.5mm
Width
36mm
Height
36mm
Weight
79g
BEC Voltage
6V
PWM Frequency
8kHz
Overload Protection
Yes
Full On Resistance
0.0004 ohm
SKU DYNS0800
Brand DYNAMITE
