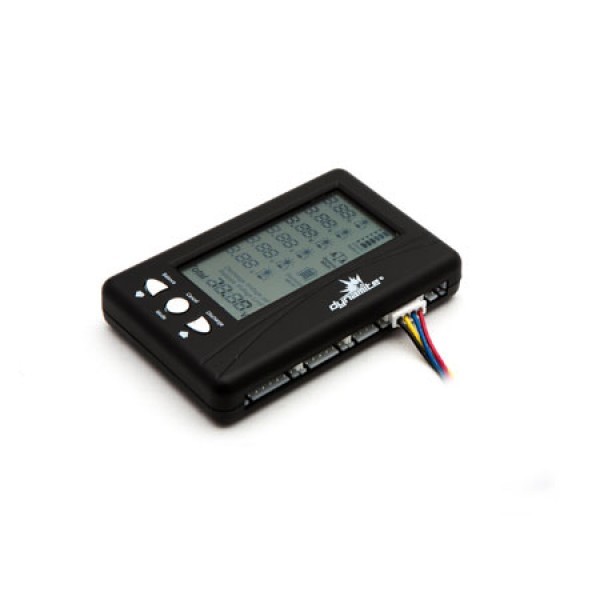

The Dynamite battery checker and discharger has various function modes for the best care of lithium-based batteries. To check a lithium battery (LiPo/LiFe/LiIon) voltage 2- to 6-cell (6.6V–25.2V) simply connect to the appropriate port, and the device will display the Single Cell Voltage, Cell Count and Total Pack Voltage. For balance and discharge functions, connect the balance connector of the battery to the appropriate LiPo/LiFe/LiIon battery port as indicated, set the default Balance Voltage Limit or adjust to suit, press the mode button and set your required balance per cell voltage and begin the balance/discharge. The balance function can be used while the battery is charging. The device will use the cell with the lowest voltage as the standard to balance the other cells.

The Balancing Indicator will flash next to the cells being balanced and the Balance Mode Indicator will be displayed. To discharge the cells to the Discharge Voltage Set (Default: 3.9V), simply press the discharge button. The Discharging Indicator will flash next to the cells being discharged. If an error occurs, triangles will appear next to the representative cells in the Cell Count and “Check Battery” will flash. When “Check Battery” is displayed, the battery cannot be balanced or discharged and likely means some irreparable damage to a cell or series of cells. As the voltage goes below voltage limits, characters will fade or disappear. Please note that this battery checker does not come with input connectors. Please refer to the "You May Need" section for recommendations.

Type
Battery Voltage Checker and Discharger
# Cells
2S - 6S
Input Connector
JST-XH (2S - 6S)
Length
3.70 in (94mm)
Width
2.36 in (60mm)
Height
0.67 in (17mm)
SKU DYNF0001
Brand DYNAMITE
