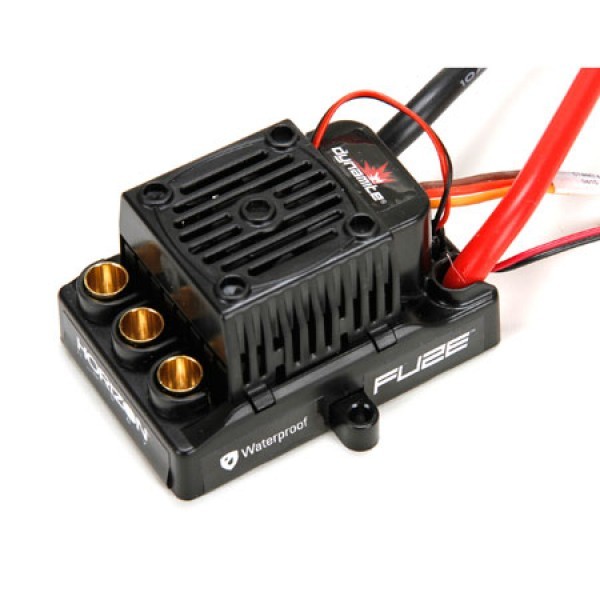

The Dynamite® Fuze™ 90A ESC is the newest addition to the Fuze ESC lineup. The ESC is waterproof, completely programmable and comes pre-wired with a high-current EC5 connector. The 90A design makes the ESC extremely robust and will handle extreme power demands from todays brushless motors. The ESC will work with most sensorless brushless motors and is 6S Li-Po compatible. The ESC was designed specifically to work with most off-road 1/8-scale applications.
  • Waterproof
  • Completely programmable
  • Pre-wired with high-current EC5 connector
  • Robust design
  • Works with most sensorless brushless motors
  • 6S LiPo
  • Designed to work with most off-road 1/8-scale applications
Forward
Yes
Reverse
Yes
Brake
Yes
Time Delay Brake
Yes
Continuous Maximum Current
100A
Input Voltage
8.4–25.2V
Input Connector Types
EC5
Output Connector Types
EC5
Momentary Peak Current
200A
Length
2.46 in (62.4mm)
Width
1.67 in (42.3mm) without mounting tabs
Height
1.32 in (33.6mm)
Weight
6.98 oz (198g)
BEC Voltage
5.5V
Overload Protection
Yes
Wire Gauge
10 AWG
Auto Cutoff
Yes
SKU DYNS2630
Brand DYNAMITE
