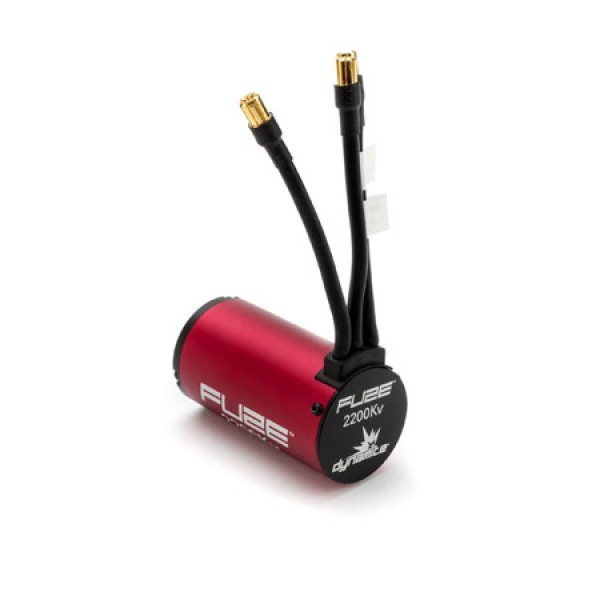

Dynamite brushless motor with 2200kv of power.

Type
Brushless Inrunner
RPM
60,000 RPM max.
Bearings or Bushings
Oversize ABEC-1 front and rear
Wire Gauge
10 AWG
Voltage
25.2V max.
RPM/Volt (Kv)
2200Kv
Resistance (Ri)
5.5 mΩ
Idle Current (Io)
1.7A
Maximum Burst Current
180A
Weight
14.0 oz (398g)
Overall Diameter
1.57 in (40mm)
Shaft Diameter
0.20 in (5mm)
Shaft Length
0.71 in (18mm)
Overall Length
3.66 in (93mm)
SKU DYNS1630
Brand DYNAMITE
