This 16 channel DVR is suitable for either home or office applications and supports the latest HD analogue
solutions AHD, TVI, CVI, IP and CVBS (Analogue). The DVR allows up to 8 additional IP cameras (sold separately) if they’re connected to the same network. It support monitors with VGA or HDMI input, includes a 2TB HDD, and features an advanced user interface with user friendly design and intuitive user controls. The DVR can connect to a wired network so you can see what is going on from anywhere in the world via your iOS™ or Android Smartphone or Tablet. Setup or use your own personal Dropbox storage account to automatically save the photos from your footage. Dropbox offers 2GB of free storage or for users who require larger storage; a subscription service is available.

Box Contents:
1 x 3MP DVR
1 x USB Mouse
1 x Remote Control

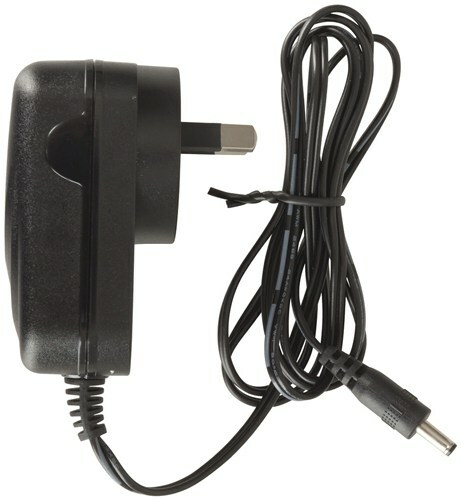

1 x Mains Power Adaptor
1 x Software CD

Features:
. Free Android & iOS® Smartphone App
. Add 8 Additional IP Cameras
. Record & Playback Simultaneously
. Easy QR Code Setup
. Dropbox Photo Backup
. Motion Detection, Manual & Scheduled Recording
. Password Protection
. Motion Detection Email & Push Notification Alerts
. External USB Backup
. Video Loss Alarm

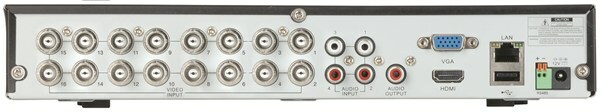

DVR Specifications:
DVR Type: AHD/TVI/CVI/IP/CVBS (Analogue)
Channels: 16 Analogue / 8 IP
Inputs: 16 x BNC (Video)
            4 x RCA (Audio)
Outputs: 1 x HDMI (Video & Audio)
              1 x VGA (Video)
              1 x RCA (Audio)
Analogue Display Resolution: 3MP (2048 x 1536) @ 18fps
                                           1080p (1920 x 1080) @ 25fps
                                           720p (1280 x 720) @ 25fps
                                           960H (960 x 576) @ 25fps
IP Display Resolution: 4MP (2592 x 1520) @ 25fps
                                3MP (2048 x 1536) @ 25fps
                                1080p (1920 x 1080) @ 25fps
                                720p (1280 x 720) @ 25fps
Analogue Recording Resolution: 3MP (2048 x 1536) @ 12fps
                                              1080p (1920 x 1080) @ 15fps
                                              720p (1280 x 720) @ 25fps
                                              960H (960 x 576) @ 25fps
IP Recording Resolution: 4MP (2592 x 1520) @ 25fps
                                     3MP (2048 x 1536) @ 25fps



iOS and Android Apps available for download from the App Store and Google Play.
RXCamView
RXCamView-apple
apple store
RXCamView
RXCamView-google
google play



For More info on Resolution.

Specifications

Equipment Type : Digital Video Recorder (DVR)
Storage Media Type : 3.5" SATA HDD
Included Capacity : 2.0TB
Replaceable : true
LAN DHCP Support : true
Suitable PSU Included : true
Recording Resolution (Analogue Input) : 1080p (1920 x 1080)
Video Channels (Direct Connection) : 16.0ch
SKU AM-QV3159
Model # QV3159
Barcode # 9319236707685
