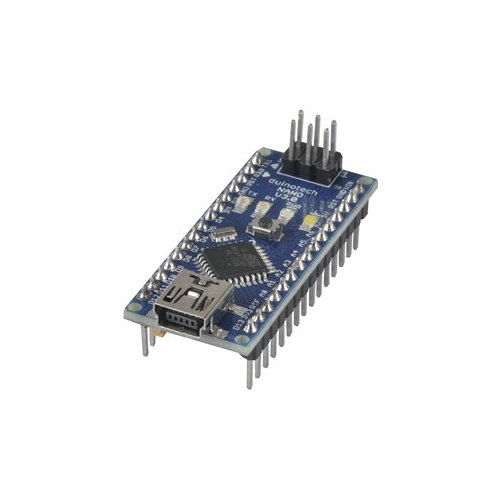

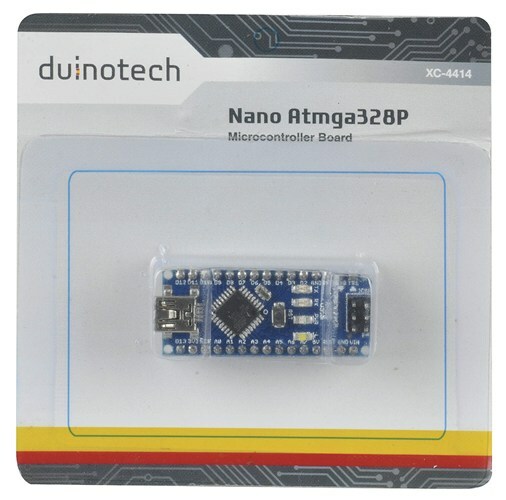

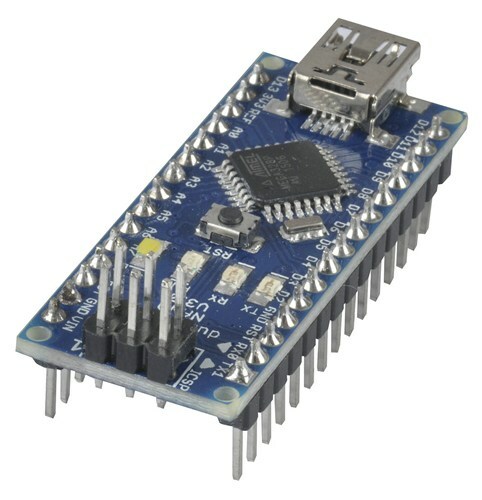

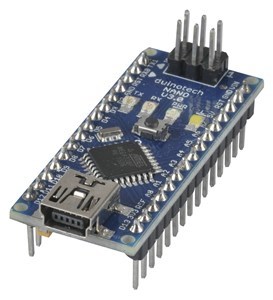

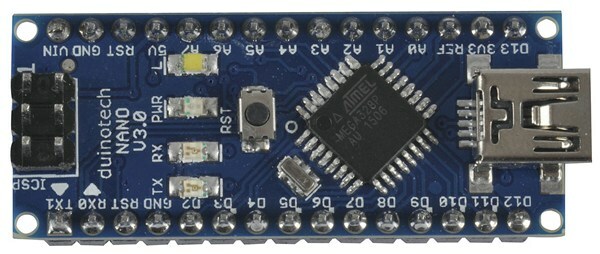

This is the most breadboard friendly Arduino™-Compatible device you will find. Despite its small size, it packs virtually all the features of the full DuinoTECH boards into a tiny DIP-style board that drops directly into your breadboard. It uses exactly the same ATMega328 chip as its larger cousins, so there is no need to change any of your coding. A Mini-B-USB port is easily accessible on top of the board for programming and serial communication (use our WC7709 cable). LEDs show power and serial status and a reset button is easily accessible. Its small DIP-style makes it easy to embed into Veroboard or custom PCBs for more advanced projects.

•    Fully Arduino™ and DuinoTECH Compatible
•    ATMega328P Microcontroller
o    Program Memory: 32kB(2kB used by bootloader)
o    EEPROM: 512 bytes
o    SRAM:2kB
o    Speed: 16MHz
•    FT232RL USB-Serial Chipset
•    IO:
o    Digital IO: 14 pins (6 are configurable as Digital or PWM)
o    PWM Capable: 6 pins
o    Analog Inputs: 6 pins
o    Serial Ports: 1 (more supported via SoftwareSerial library)
•    Input voltage:
o    5VDC Regulated via USB port or 5V pin
o    7-14VDC via Vin pin
o    On-board regulator supplies 5V when unit is powered via Vin pin
•    Dimensions: 46(L) x 18(W) x 18(H)mm

SKU AM-XC4414
Model # XC4414
Barcode # 9319236445907
