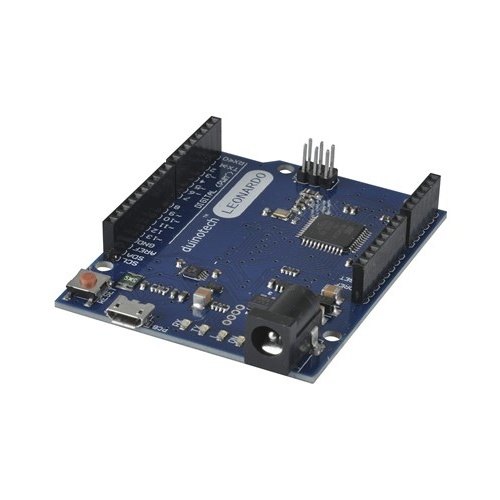

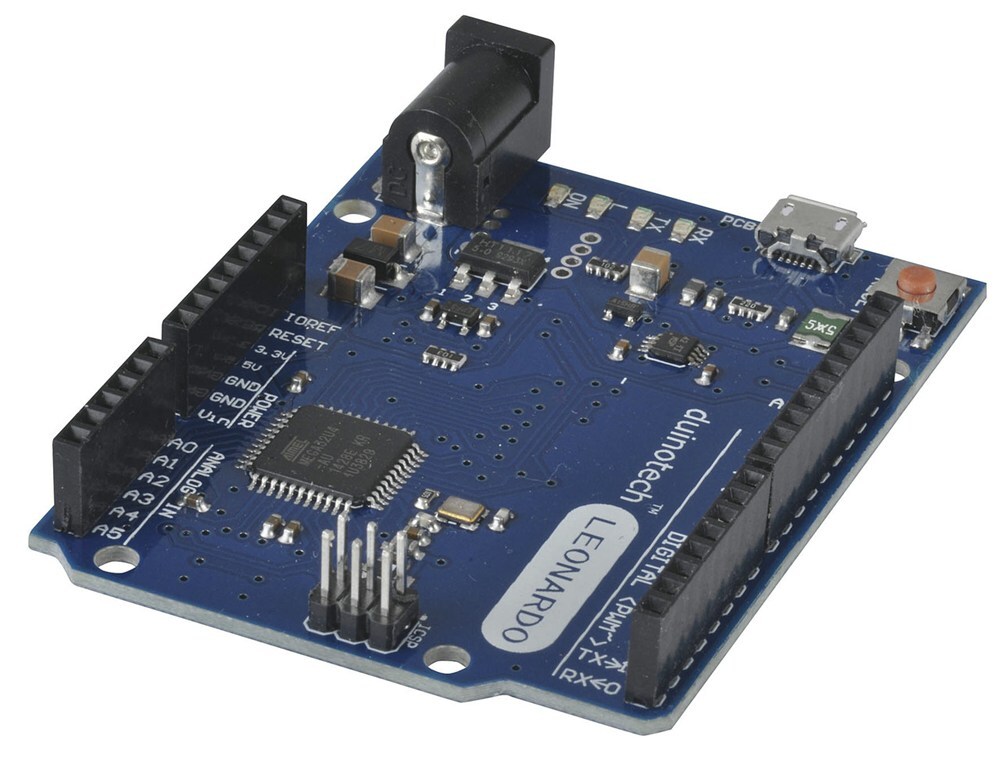

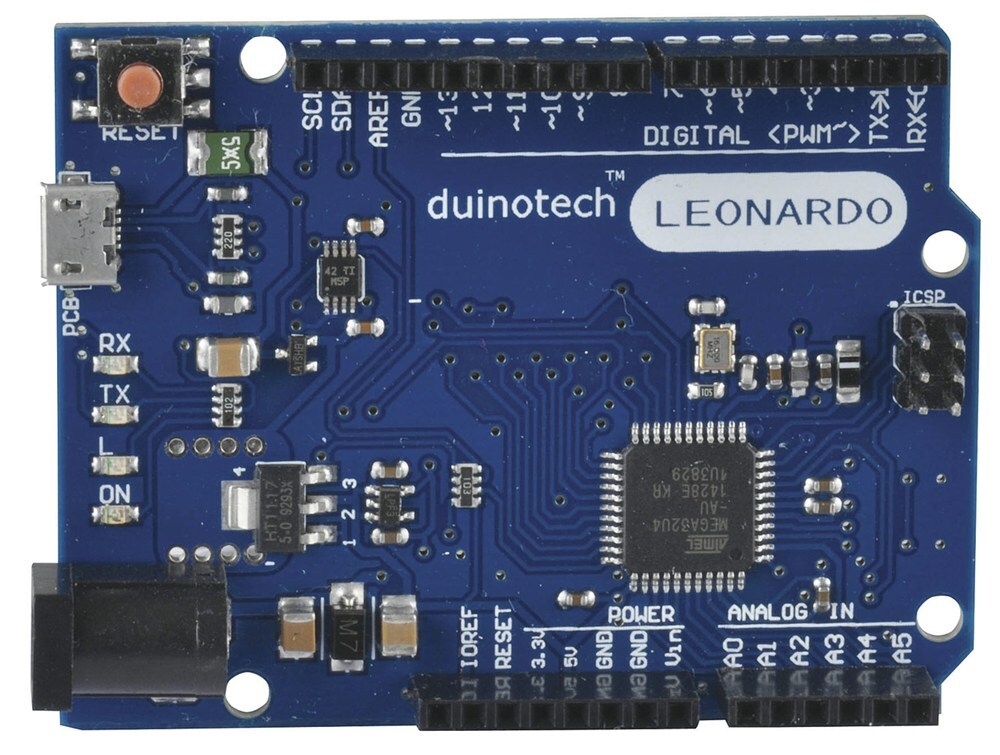

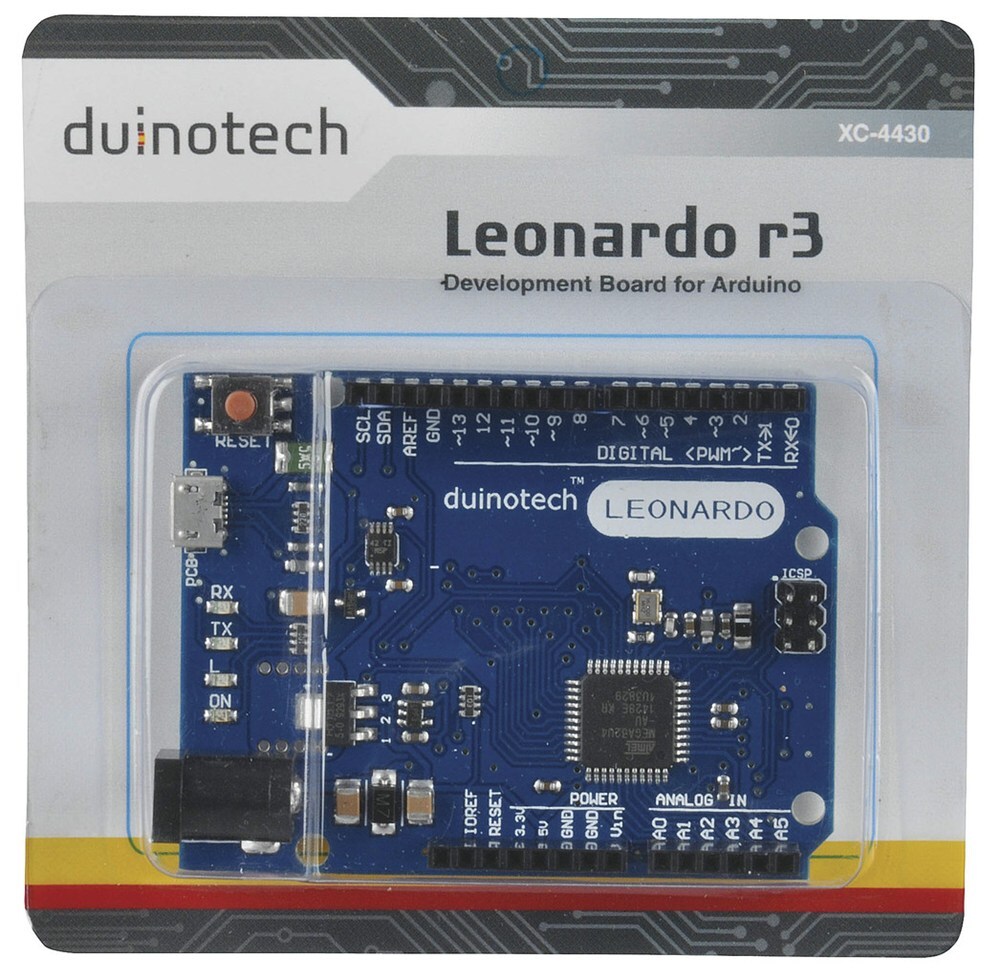

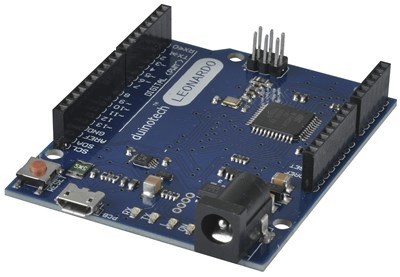

Most of the Duinotech models use two chipsets, one for the main controller, one for USB communication. The Duinotech Lite combines both these functions into a single IC, which opens to door for more advanced USB functions. Now you can have your DuinoTECH Lite emulate a computer keyboard, mouse, joystick and many other types of input device. The DuinoTECH Lite also boasts more analog inputs (12), and an extra PWM channel.

•    Fully Arduino™- Compatible
•    ATMega32u4 Microcontroller
o    Program Memory: 32KB(4KB used by bootloader)
o    EEPROM: 1KB
o    SRAM: 2.5KB
o    Speed: 16MHz
•    Built in USB-Serial
•    IO:
o    Digital IO: 20 pins (7 are configurable as digital or PWM)
o    PWM Capable: 7 pins
o    Analog Inputs: 12 pins (6 are shared with digital pins)
o    Serial Ports: 2 (One USB, one UART, more supported via SoftwareSerial library)
•    Input voltage:
o    5VDC Regulated via USB port or 5V pin
o    7-14VDC via Vin pin
o    On-board regulator supplies 5V when unit is powered via Vin pin
•    USB Cable required- use WC7724
•    Dimensions: 75(W) x 53(L) x 13(H)mm

SKU AM-XC4430
Model # XC4430
Barcode # 9319236445990
