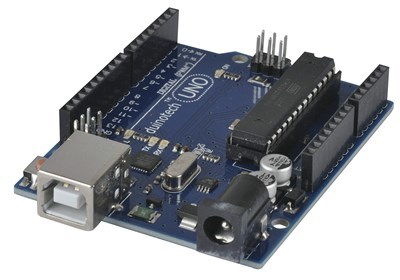

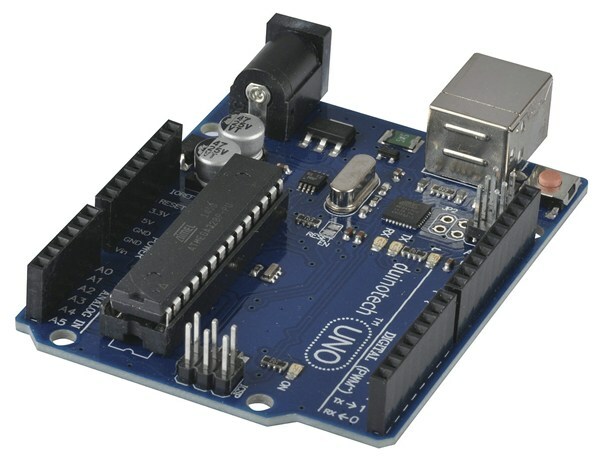

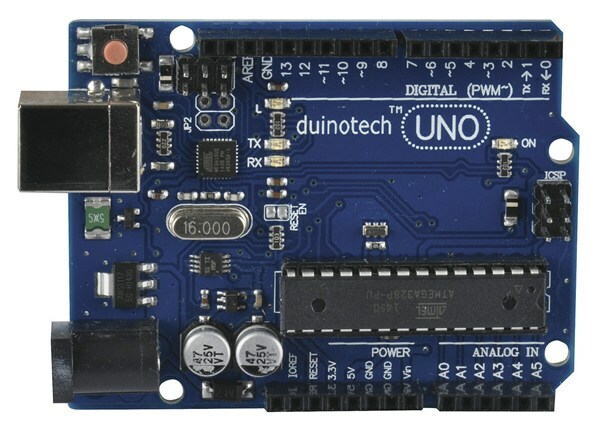

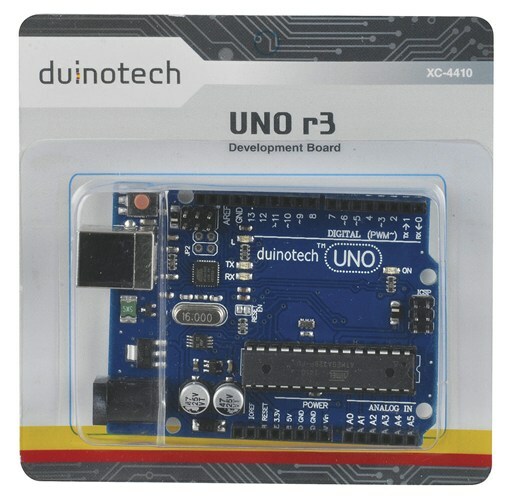

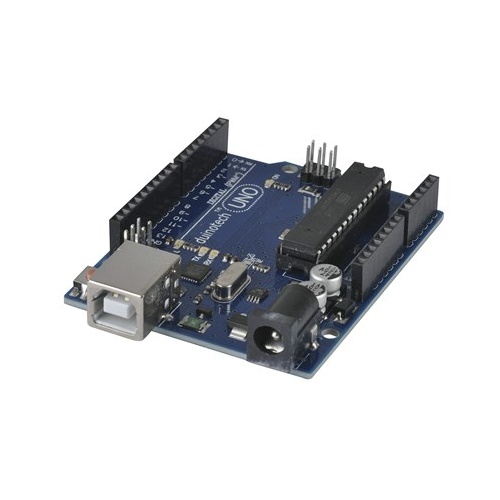

The flagship of our DuinoTECH family, the DuinoTECH Classic a 100% Arduino™ Compatible development board. Its stackable design makes adding expansion shields a piece of cake. Powered from 7-12VDC or from your computers USB port. In the past few years the Arduino™ has taken the electronics world by storm. Everyone from hobbyists to professional engineers is making use of its limitless versatility. And it’s not just for tech-heads; it’s easy to learn programming has made the Arduino™ a hit with artists and educators as well. Jaycar is proud to add the DuinoTECH to our lineup. Providing every feature of the Arduino™-UNO and the Freetronics-Eleven, now at an even lower price! Join the Arduino™ revolution today!

Fully Arduino™-UNO Compatible
•    ATMega328P Microcontroller
o    Program Memory: 32KB(2KB used by bootloader)
o    EEPROM: 512 bytes
o    SRAM: 2KB
o    Speed: 16MHz
•    ATMega16u2 USB-Serial Chipset
•    IO:
o    Digital IO: 14 pins (6 are configurable as Digital or PWM)
o    PWM Capable: 6 pins
o    Analog Inputs: 6 pins
o    Serial Ports: 1 (more supported via SoftwareSerial library)
•    Input voltage:
o    5VDC Regulated via USB port or 5V pin
o    7-14VDC via Vin pin
o    On-board regulator supplies 5V when unit is powered via Vin pin
•    Requires USB B type cable. Use WC7705
•    Dimensions: 75(W) x 53(L) x 13(H)mm


SKU AM-XC4410
Model # XC4410
Barcode # 9319236445884
