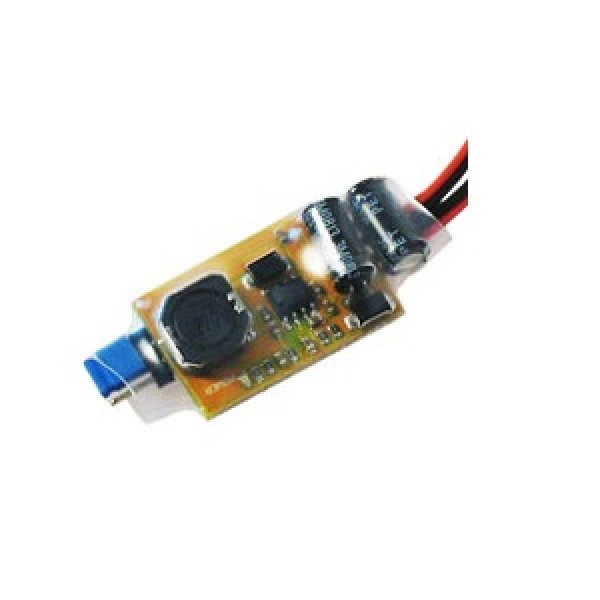

Fly your RC plane with more confidence with the VR-3 voltage regulator from Dualsky. This switch-mode DC regulator runs separate to your ESC; taking high voltage (5.5'23V) power from your battery pack and converting it to a consistent, safe voltage for your receiver, gyro and servos. The VR-3 lets you easily choose to run your system at 5 or 6 volts. Make sure you remote control plane is performing at the ideal level - order the Dualsky VR-3 now.

  • Overcurrent and overheat protection lets you fly with security
  • Superb 300KHz switching frequency
  • Maximum efficiency of 92%, higher than linear BECs
  • Small size and light weight
  • Reverse polarity protection at input
Output
5V/3A or 6V/3A, Maximum 5A (10% duty)
Ripple
50mVp-p(2A/12V)
Input
5.5V-23V (2-5s Lithium Battery Pack, 5-15 cells NiMh/NiCd battery pack)
Size (L x W x H)
21.5 x 15.5 x 13.5mm
Weight (Cables Included)
10g
Idle Power Consumption
10 ma from battery
Connections
Red/Black 24 ga. Wire pair for main power in, 24 ga. Red/Black servo lead-out to Rx, JR style
Controls
Jumper selects 6v or 5v output
Indicators
Green LED shows power ON
Installation
Recommend mounting in airflow to improve reliability and efficiency
SKU DSVR3
Barcode # 6941047100879
Brand Dualsky
Shipping Weight 0.0500kg
