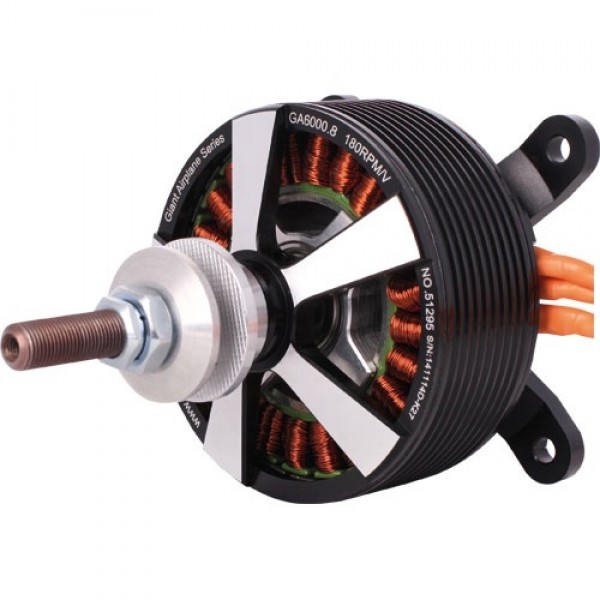

The GA6000.9 is a high torque brushless motor from Dualsky which can work with 10-12S lithium batteries. It is designed for large fixed-wing RC planes up to 8kg in weight. This motor can serve as an alternative to a 60cc gasoline engine.

Features

  • High torque
  • Brushless
  • Can work with 10-12S lithium batteries
  • Designed for large fixed-wing RC planes
  • Can serve as alternative to 60cc gas engine
RPM/V
160 RPM/V
Weight w/o accessories
1020 g
Outer diameter
90.2 mm
Length w/ mounts
101 mm
Length (overall)
141 mm / 151 mm
Diameter of shaft
12 mm (internal)
10 mm (output)
Mounting holes pitch
100 mm
Slots, Poles
24, 28
Idle Current (Io) @ 10V
1.8 A
Resistance (Ri)
17.1 mOhm
Nominal voltage
30 - 51 V, 10 - 12S LiPo
Peak power [15s]
6200 W (8.4HP)
Bursts current [15s]
130 A
Cruising power [8 mins]
3100 W (4.2HP)
Recommended ESC
130A - 160A HV Series
Propeller
24x10, 24x12, 25x10, 26x10 (No electric propeller allowed)
Weight of sports plane
Up to 17 kg
Weight of 3D planes
Up to 10 kg
  • High torque
  • Brushless
  • Can work with 10-12S lithium batteries
  • Designed for large fixed-wing RC planes
  • Can serve as alternative to 60cc gas engine
Battery Compatability
10-12S Lithium
Suitable Planes
Fixed Wing, 8kg weight maximum
SKU DSXM51554
Barcode # 6941047115545
Brand Dualsky
Shipping Weight 0.0500kg
