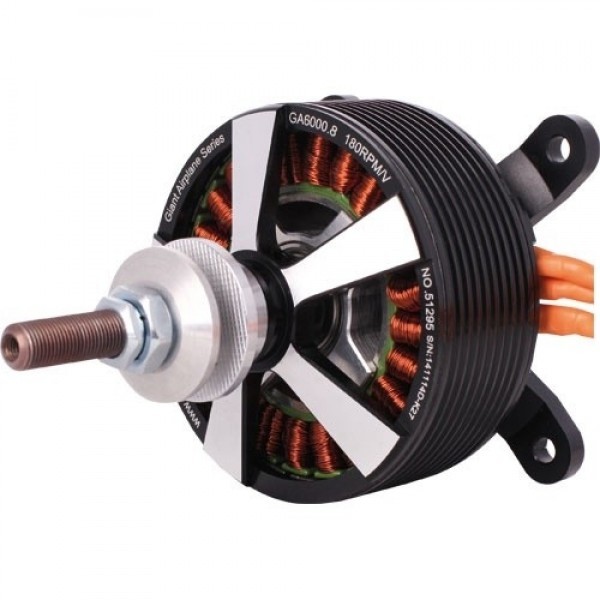

The GA6000.8 is a high torque brushless motor from Dualsky which can work with 10-12S lithium batteries. It is designed for large fixed-wing RC planes or UAV systems. This motor can serve as an alternative to a 50-60cc gasoline engine.
  • High torque
  • Brushless
  • Can work with 10 - 12S lithium batteries
  • Designed for large fixed-wing RC planes
  • Can serve as alternative to 60cc gas engine
RPM/V
180 RPM/V
Weight
1090g
Outer Diameter
90.2mm
Length w/ propeller mount
92mm
Length w/o propeller mount
78mm
Diameter of Shaft
10mm
Mounting Holes Pitch
100mm
Slots, Poles
24, 28
Idle Current (Io) @ 10V
2.3A
Resistance (Ri)
12.6mOhm
Nominal Voltage
30-51V, 10-12S LiPo
Peak Power [15s]
6800W (9.2HP) @ 8000RPM
Bursts Current [15s]
140A
Cruising Power [8mins]
3500W (4.8HP)
Propeller (No electric propeller allowed)
22x10, 22x12, 23x8, 23x10, 24x8, 24x9, 24x10, Thrust 17kg (w/fully charged 5000mAh 70C Battery)
Weight of sports airplane
Up to 17.1kg
Weight of 3D airplane
Up to 11.4kg
Applications
Designed for 50-60cc class fixed wing airplane or UAV system
SKU DSXM51295S
Brand Dualsky
