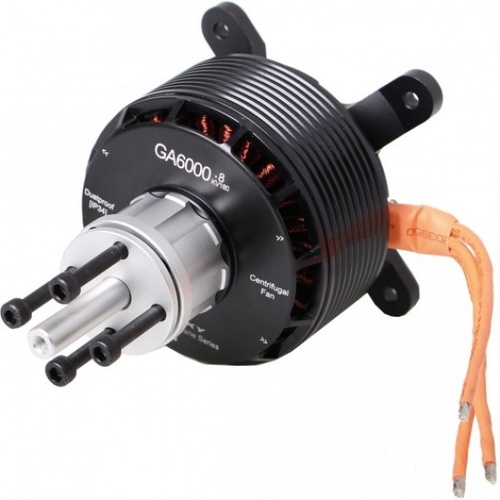

The GA6000.8 is a high torque brushless motor from Dualsky which can work with 10-12S lithium batteries. It is designed for 3D airplanes up to 10kg in weight, sports airplanes up to 17kg in weight or UAV systems. This motor can serve as an alternative to a 55-60cc class gasoline engine.
  • Suitable for 3D airplanes, sports airplanes & UAV systems
  • Brushless
  • Can serve as alternative to 55-60cc gas engine
RPM/KV
180 RPM/V
Weight w/o accessories
1020g
Outer diameter
90.2mm
Length w/ mounts
101mm
Length (Overall)
141mm
Diameter of shaft
12mm (internal)
10mm (output)
Mounting holes pitch
100mm
Idle current @ 10V
2.1A
Nominal Voltage
30-51V, 10-12S LiPo
Peak Power (15s)
6800W (9.2HP) @ 8000RPM
Bursts current (15s)
140 A
Recommended ESC
130A - 160A HV Series
Propeller
22 x 10, 23 x 8
23 x 10 (Max 7650RPM)
24 x 8, 24 x 9, 24 x 10, 25 x 10
XOAR 24 x 10 CF @ 12S, 125A, Thrust 18KG (No electric propeller allowed)
Weight of sports airplane
Up to 17kg
Weight of 3D airplane
Up to 10kg
Applications
Designed for 55-60cc class, 3D airplanes or UAV systems
SKU DSXM51295
Brand Dualsky
