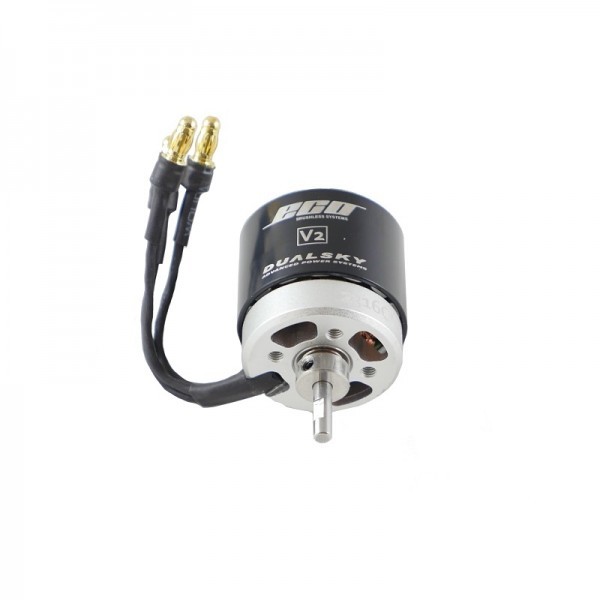

Dualsky Eco 2316C, 1500kv Brushless Motor

KV
1500
Turns
5.5
Weight
72g
Dimensions
28.8 x 32.9mm
Slots & Poles
12N14P
Ri (mOhm)
39
Io @ 10V (A)
1.4
No. of Cells (LiPo)
2..3
Max. Efficiency Current [A]
20
Max Burst Current (15S) [A]
33
Max. Power (15S) [W]
264
Max Torque [N*M]
0.25
Shaft Diameter (mm)
3.175
Mounting Holes Pitch
16/16
Input Connectors
GC3.5
Recommended ESC
XC-45-LITE or XC3012BA
Propeller
2S: 11x5.5E, 12x6E
3S: 7x5E, 8x6E
Class
450 Class, 600-1100g
SKU DSXM51652
Barcode # 6941047116528
Brand DUALSKY
Shipping Weight 0.0500kg
