Double your performance with this tuning combo from Dualsky, featuring their XM5060EA motor and XC8018BA ESC.

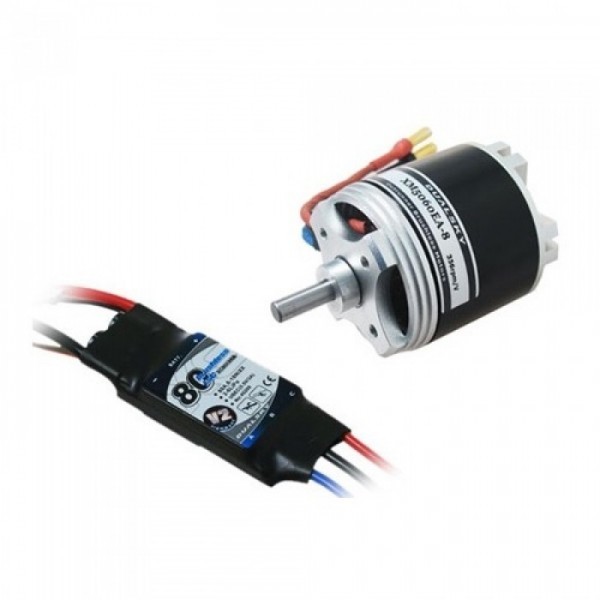

This is the ideal choice for 50-70-size RC aircraft - the Dualsky 50-size tuning combo. This package comes with Dualsky's XM5060EA motor and XC8018BA ESC. If you are completing a kit or looking to upgrade your model's electronics, this convenient package is an outstanding choice.

  • XM5060EA motor
  • XC8018BA ESC
  • Suitable for 50-70class RC aircraft, such as Sebart 50E 3D models
Motor Specs

RPM/V (KV)
355
Weight
382g
Diameter
49mm
Length
58mm
Diameter of Shaft
6.0mm
Mounting holes pitch
30/30
Slots, Poles
12,14
Idle Current (Io) @ 10V
1.5A
Resistance (Ri)
25 mOhm
Cruising Power (W) [8mins]
829W
Bursts Current (15S) [A]
68
Peak Power (W) [15S]
1508
Max Weight of Sport Models
4.1kg
Max weight of 3D Models
2.8kg
Memo
.75-.90 2-Stroke
Up to .110 4-Stroke
ESC Specs

Dimensions
75 x 30 x 14mm
Weight
71g
Number of Cells
NiXX 6-18, 7.2-21.6V
LiPo 2-6, 7.4-22.2V
Resistance (Ri)
0.0016
Max Cont. Current (A)
80
Max Cont. Output (W)
1680
Max Burst Current (A)
100
Max Burst Output (W)
2040
BEC / Dissipative Power
5.5V/3A (switching)
Programmable
Throttle + ProgCARD+ USB Link
Input Wires
150mm, 12AWG, DC3
Output Wires
90mm, 14AWG, DB4
Signal Wite
300mm JR
Applications
.70 Class Aerobatic
SKU DSTC.6A.70EX
Barcode # 6941047191129
Brand Dualsky
Shipping Weight 0.0500kg
