This tuning combo from Dualsky offers a XM2834CA-9 Motor and XC-45-Lite ESC.  This package will suit 450-size RC planes or helicopters.  It is compatible with the V2 programming card.

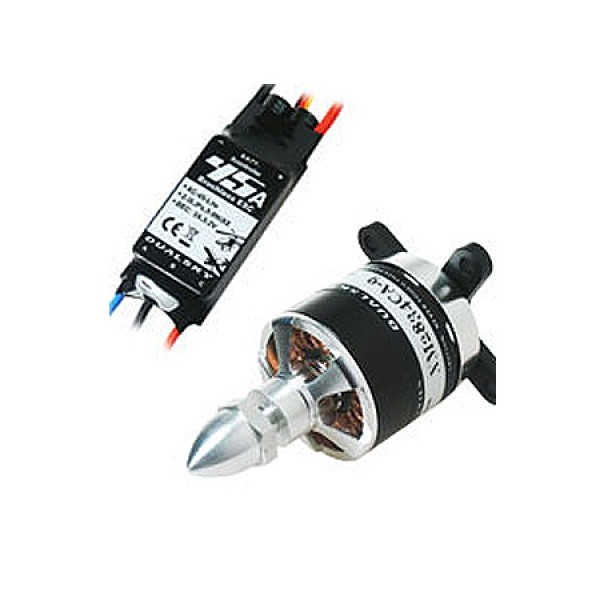

  • Comes with XM2834CA-9 motor and XC-45-Lite ESC
  • Ideal for 450-size RC planes or helicopters
  • Compatible with the V2 programming card
Motor RPM/V (KV)
980
Motor Stator Diameter (mm)
22
Motor Magnet Length (mm)
16
Motor Shaft Diameter (mm)
3.2
Motor Mounting Holes Pitch
16/21
Motor Weight (g)
70
Motor Resistance (Ri)(mOhm)
81
Motor Idle Current (Io) @10V (A)
0.70
Motor No.of Cells (LiPo)
2-3
Motor Max. Efficiency Current (A)
17
Motor Max. Burst Current (15s)(A)
24
Motor Approximate Max. Power (15s) (W)
260
Motor Input Connectors
DB3
Motor Recommended ESC
XC2512BA
Motor Prop. Range
10x5 to 12x6
Motor App. Class (g)
600-1200
Dimensions (L x W x D) (mm)
67x 25x 7
Weight, with wires (g)
38
Number of Cells (NiXX)
5-9 cells, 6-10.8V
Number of Cells (LiPo)
2-3s, 7.4-11.1V
Resistance(Ri)(Ohm)
0.0026
Max Cont. Current & Max Cont.Output
45A, 500W
Max Burst Current & Max Burst Output
60A, 666W
BEC / Dissipative Power
5.2V/3A (Linear)
Programmable
Throttle + ProgCARD V2
Signal Wire
300MM JR
SKU DSTC.3A.450
Barcode # 6941047191068
Brand Dualsky
Shipping Weight 0.0500kg
