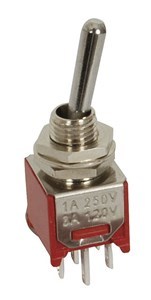

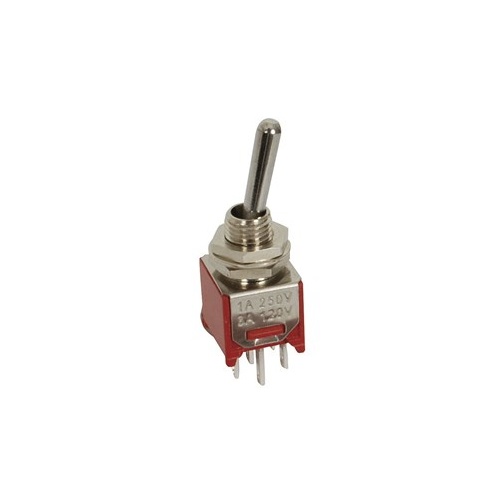

SOLDER TAG - THREADED BUSH
Brackets indicate switch position(on - on)
ELECTRICAL LIFE: 30,000 make-and-break cycles at full load
CONTACT RESISTANCE: 20m ohm max. initial at 2-4VDC@100mA for both silver and gold plated contacts. This generally falls as switch contacts bed in.
INSULATION RESISTANCE: 1,000Mohm min, any contact to body
DIELECTRIC STRENGTH: 1,000V RMS @ sea level
OPERATING TEMPERATURE: -30 degrees - +85° Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE: Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE: Brass, chrome plated
BUSHING: Brass, nickel-plated
HOUSING: Stainless Steel
TERMINALS: Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS: Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
SKU AM-ST0310
Model # ST0310
Barcode # 9319236872697
