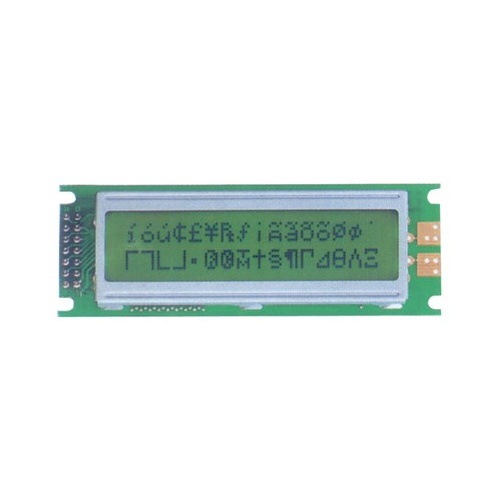

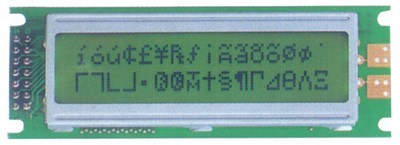

Compact Liquid Crystal Diode module with ASCII (96 characters), Special Letters (92 characters) and Custom Letters (8 characters). A two line screen displays up to 16 characters at a time and the module will hold the current display in its own inbuilt memory.

Specifications:
• Number of characters: 16 characters x 2 lines
• Module Dimension: 85(W) x 30(H) x 13.2(T)mm
• Viewing display area: 65(W) x 16(H)mm
• Character size; 2.78(W) x 4.89(H)mm
• Other Mechanical Data: STN, Yellow Green, 1/16 duty, 6 O'clock
• Supply voltage for logic: SYN: VDD- VSS, Min: 4.5V, Type: 5.0V, Max: 5.5V
• View angle - vertical: Sym: O, Condition: CR 2°, Min: - 10°, Max: 40°
• View angle - horizontal: Sym: , Condition: CR 2°, Min: - 30°, Max: 30°
SKU AM-QP5515
Model # QP5515
Barcode # 9319236865699
