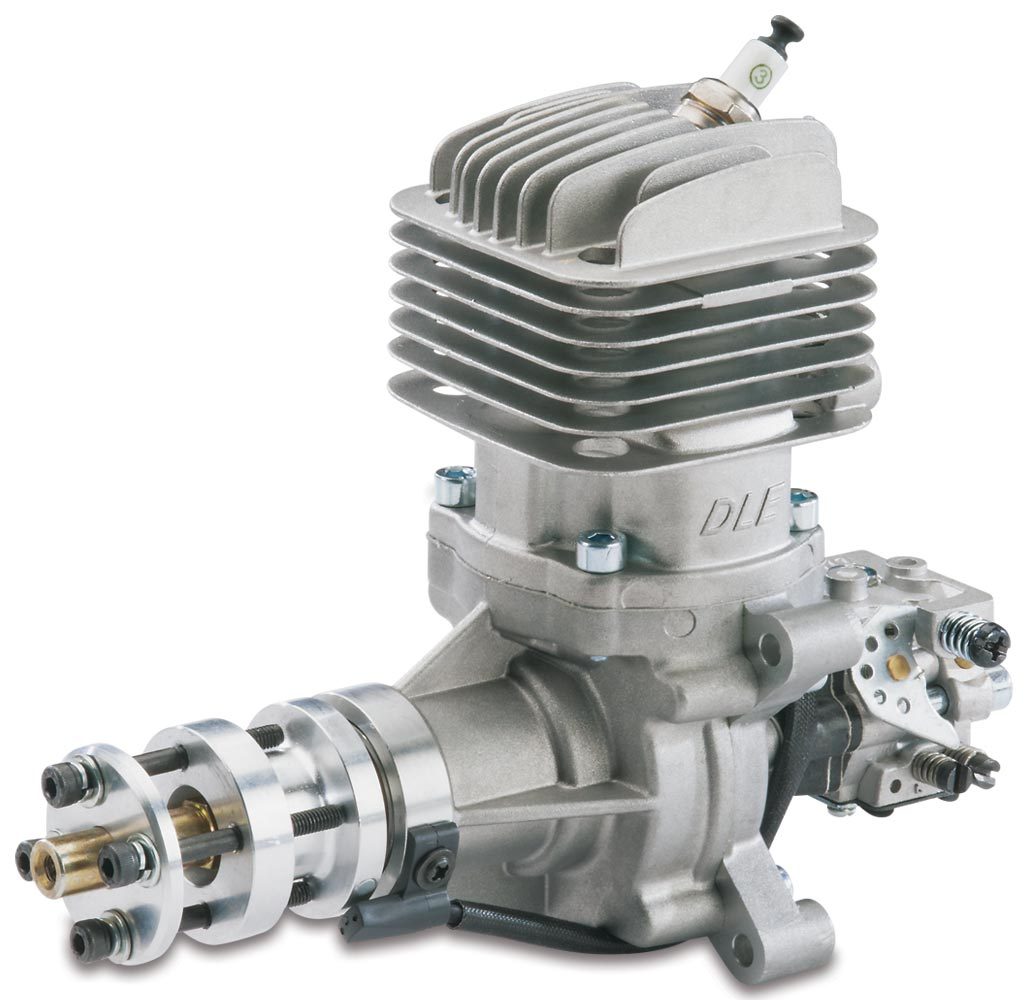

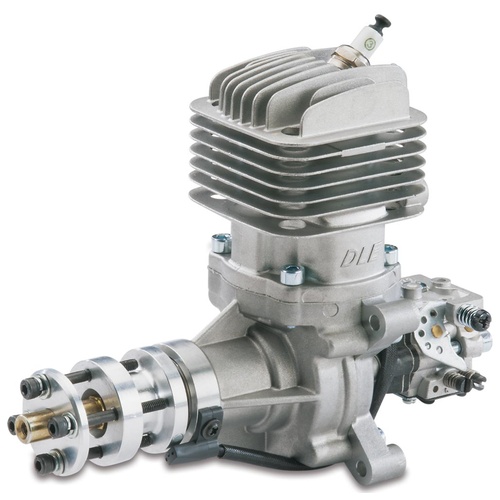

DLE-35RA Gasoline Engine

High performance in a compact package!

Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size — great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.

  • Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
  • Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
  • Included muffler's two outlets reduce back pressure and improve performance.
  • Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

Performance
4.1HP/8500rpm
Idle Speed: 1500 rpm/min
9.0Kg Static Thrust/ 100 meters Altitude
7.0Kg Static Thrust/ 1800 meters Altitude
Recommended Propellers:  18x10; 19x8; 19x10; 20x6; 20x8; 20x10
Ignition Battery: 4.8v ~8.4v (latest Version ignition)
Replacement Spark Plug: NGK CM6
Plug Gap: 0.018" to 0.020: Installation Torque: 7 to 8 ft-lbs

Specifications
Displacement: 34.9cm3
Diameter × Stroke: 38.5mm×30mm
Compression Ratio:  7.6:1
Fuel 2C Gasoline:30:1 - 40:1 (Mineral based  at 30-32:1 for breakin, 30~40:1 quality synthetic thereafter)
Weight:  Main Engine - 940g; Muffler - 70g; Ignition device - 130g

Specifications:
Stock Number: DLEG0435
Displacement: 34.9 cc (2.13 cu in)
Bore: 1.52 in (38.5 mm)
Stroke: 1.18 in (30 mm)
Total Weight: 2.77 lb (1.26 kg)
RPM Range: 1,500-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: Unleaded gasoline, oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:
Ignition Battery: 4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix:
30:1
Replacement Spark Plug: DLEG3526
Weight Breakdown:
Engine: 33.02 oz (936 g); Muffler: 2.61 oz (74 g); Ignition: 5.26 oz (211 g)

SKU DLE35RA
Barcode # 907007
Brand DL ENGINES
Shipping Weight 4.0000kg
