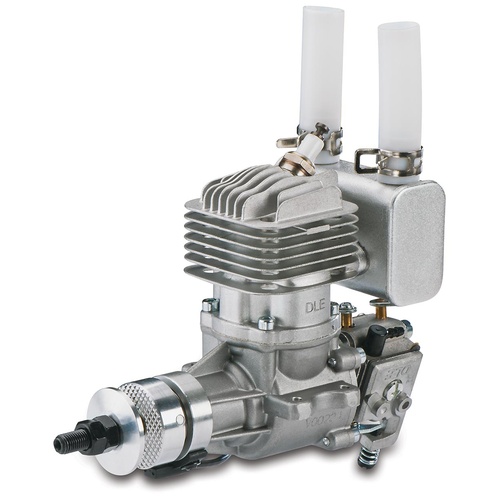

DLE-20RA Single Cylinder Rear Exhaust Petrol Engine

DLE-20cc Rear Exhaust Engine
NEW 4.8v - 14v Auto Advancing Electronic Ignition
Twin outlet Muffler, Couplers, Clamps Gasket and Bolts
DLE Pump Carby
Genuine NGK CM6 Spark Plug

Performance
2.5HP/9000rpm
Idle Speed: 1700 rpm/min
6.3Kg Static Thrust/ 100 meters Altitude
5.6Kg Static Thrust/ 1800 meters Altitude
Recommended Propellers: 14x10; 15x8; 16x6; 16x8;17x6
Ignition Battery: 4.8v ~14v (Latest Version)
Replacement Spark Plug: NGK CM6
Plug Gap: 0.46 to 0.51mm (0.018" to 0.020): Installation Torque: 7 to 8 ft-lbs

Specifications
Displacement: 20cm3
Diameter × Stroke: 32mm×25mm
Compression Ratio:  10.5:1
Fuel 2C Gasoline:30:1 - 40:1 (30:1 for breakin, 40:1 quality synthetic thereafter)
Weight:  Main Engine - 660g; Muffler - 80g; Ignition device - 130g



pecifications:
Stock Number: DLEG0420
Displacement: 20.0 cc (1.22 cu in)
Bore: 1.26 in (32 mm)
Stroke: 0.98 in (25 mm)
Weight:
        Engine: 1.46 lb (660 g)
        Muffler: 2.8 oz (80 g)
        Ignition Module: 4.6 oz (130 g)
Total: Weight: 1.92 lb (870 g)
RPM Range: 1,700-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition module, muffler, spark plug, manual, gasket, bolts, throttle arm extension & two exhaust extensions
Suggested Propellers: 14x10, 15x8, 16x6, 16x8 & 17x6
Suggested Break-in Prop: n/a


Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2326
Static Thrust: 13.88 lb (6.3 kg) @ 328 ft (100 m) altitude; 12.34 lb (5.6 kg) @ 5,900 ft (1800 m) altitude

SKU DLE20RAENGINE
Barcode # va05927
Brand DL ENGINES
Shipping Weight 3.0000kg
