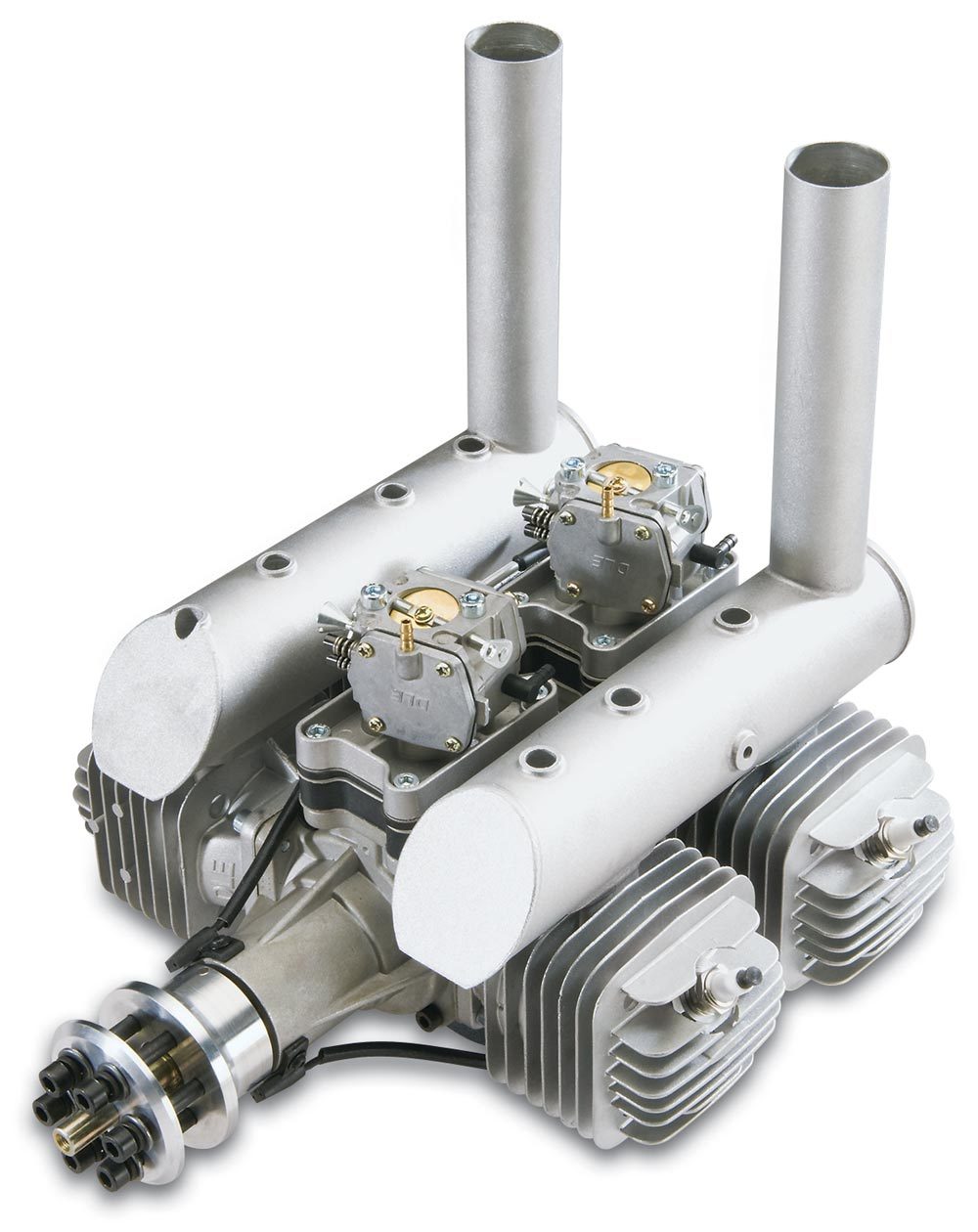

DLE-222 Flat Four Gasoline Engine

DLE-222 Gasoline engine


Big Power for Big Aircraft

At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get — including mufflers, mount, standoffs and a 6-bolt prop hub — the value-to-price ratio is impressive, too.

DLE electronic ignition
DLE electronic ignition
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.

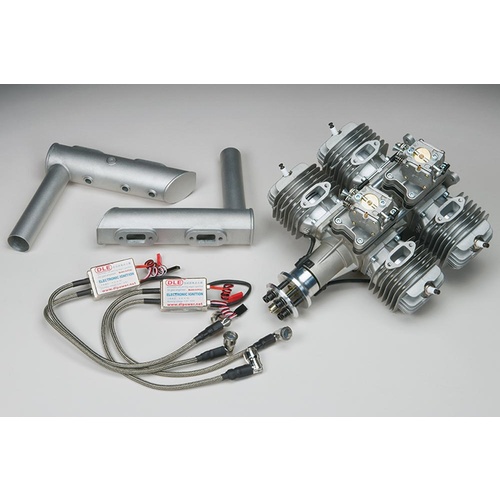

Included parts
Loaded with "extras!"
With DLE, accessories are an added value instead of an extra cost. The DLE-222 package includes 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, a throttle arm extension, mount and mounting template.


Specifications:
Stock Number: DLEG0222
Displacement: 13.6 cu in (222.5 cc)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 12.37 lb (5.61 kg)
RPM Range: 1,000-7,500
Output: 21.5 hp @ 7,500 rpm
Requires: Gasoline, oil, two ignition batteries & propeller
Includes: dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template
Suggested Propellers: 32x10, 32x12 & 34x10


Technical Data:
Ignition Battery: two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required with LiPo or LiFe use.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2226


Recommended Products:
Ultra 6V 2000mAh NiMH Packs
Xoar 32x10 Beechwood Propeller
