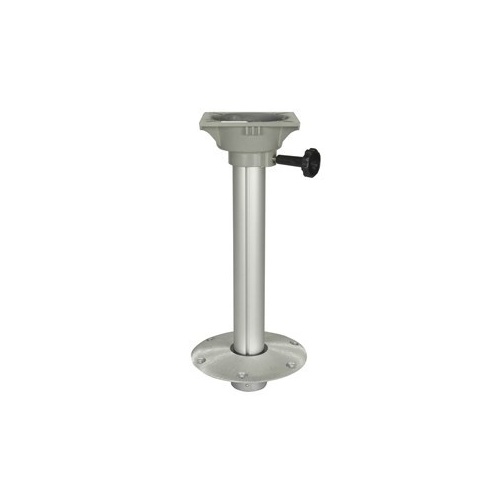

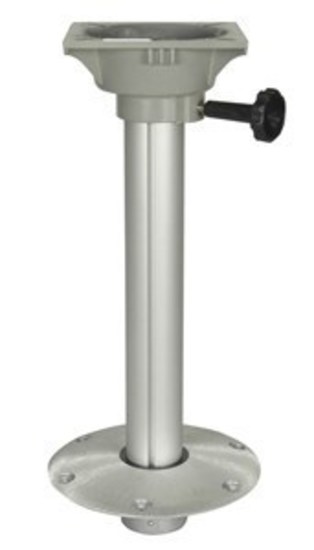

This seat pedestal assembly represents incredible value for money.

The base is a die-cast alloy fitting finished but not painted. You simply paint the base with an aluminium etch primer and then a final coat the colour of your choice. The base measures 230mm diameter and requires an 80mm hole to be bored into the floor of your cockpit or cabin. Six holes 8mm diameter and countersunk will fasten the unit. It is recommended that metal thread stainless steel screws only be used with DURALAC sealing compound. The pedestal itself locks securely into this base and will stay secure in the roughest of seas.

The seat mounting bracket has a handwheel to friction clamp the seat base to the pedestal. The heavy duty seat base has slotted holes to fix to almost any commercial seat available, including all of our seat range. The floor-to-seat base height is 465mm, however, if you wanted to reduce this you could. It would mean cutting the pedestal at the TOP END by an appropriate tool. Remember - you can always cut a bit more off if the seat assembly is too high, but you can't go back if you cut too much off!
SKU AM-MUA680
Model # MUA680
Barcode # 9319236986653
Shipping Weight 3.0100kg
