An ideal addition to any low voltage DC system this digital power meter features real time display of the voltage, current draw, and power consumption. Once running it also stores minimum and maximum voltage, current, and power, together with cumulative amp hours and watt hours consumed by the connected equipment. Suitable for DC systems from 5 to 60 volts and available in versions suitable for inline connection or remote connection with a separate current shunt. Mount the meter using the included snap-in bracket or magnetically on any ferrous surface.

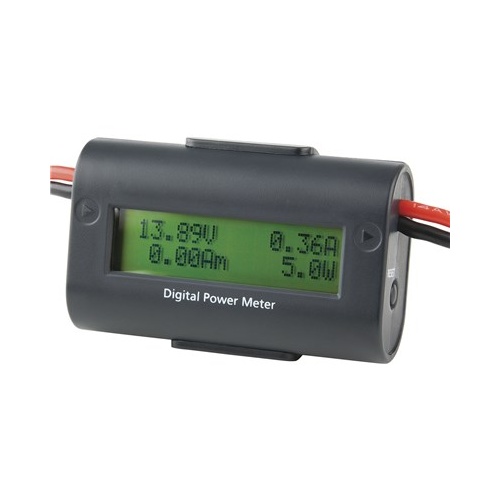

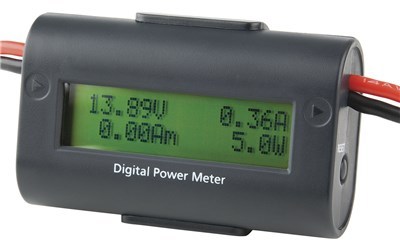

This is a Digital DC Power Meter with Internal Shunt
• Continuous Current Range: 0-20A
• Peak Current: 30A for 30 minutes
• Dimensions: 45(W) x 75(L) x 23(D)mm
• Operating current: 12mA peak

Measurement Specifications:
• Voltage Range: 5-60VDC (0-60VDC with external DC power source)
• Wattage Range: 0-12,000W

Logging Specifications:
• Cycle Time: 3 minutes
• Maximum Amp Hours: 99,999Ah
• Maximum Kilowatt Hours: 9,999.9kWh
• Maximum Cumulative Log Time: 75 hours
SKU AM-MS6170
Barcode # 9319236975114
