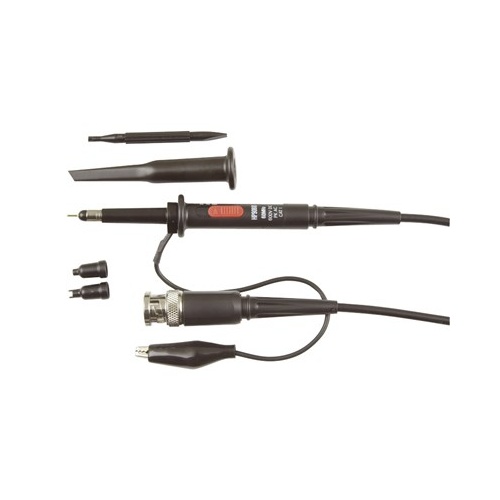

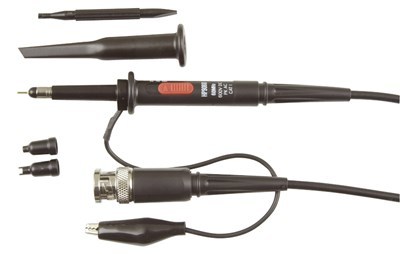

This quality probe set consists of a 1.2m quality cord terminated at one end with a moulded-on stainless steel BNC connector and 1 x, 10x attenuator probe at the other end. An earthing lead 180mm long with alligator clip to connect to the probe at the other end is provided. Also provided is an adaptor that slides on to the probe to change the probe tip to a spring hook. Suits QC-1901. *NB: Not to be used for EHT voltage. 100x required for this.Attenuation 10:1Bandwidth DC~40MHz (+/-1dB) DC~60MHz (±1dB)Input R ~10MohmInput C ~22pFMax Input Voltage: DC 600VAttenuation 1:1Bandwidth DC~3MHz (+/-3dB) DC~6MHz (±3dB)Input R ~1MohmInput C ~180pFMax Input Voltage: DC 600VSUITS VIRTUALLY EVERY CRO WE'VE SEEN
SKU AM-QC1902
Model # QC1902
Barcode # 9319236015414
