The AV to HDMI 4K Upscaler Converter is a universal converter for analogue composite input to HDMI 4Kx2K@60Hz output. The analogue to digital conversion in this module employs 10 bits maximal 297MSPS sampling, black/white level expansion, colour transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to HDMI output. Making video come alive, delivering the sharpest, most realistic HD visuals available. Supplied with a 5VDC, 1A mains power adaptor.

  • No installaion driver required
  • Flexible and portable
  • Provide advanced signal processing with great precision, colours & resolution
  • Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
  • Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz, 1080p@60Hz or 720p@60Hz output
SpecificationsAC-1776

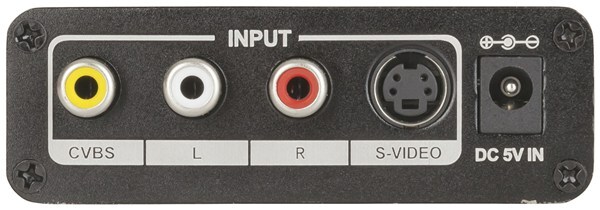

Input ports1 x RCA (Yellow, White, Red), 1 x S-Video, 1 x Mini USB
Output1 x HDMI
CVBS/S-VIDEO inputPAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
HDMI output resolution4Kx2K@60Hz, 4Kx2K@30Hz, 1080p@60Hz or 720p@60Hz output
Weight 300g
Dimensions93(D) x 84(W) x28(H)mm
SKU AM-AC1776
Model # AC1776
Barcode # 9319236487082
